Description

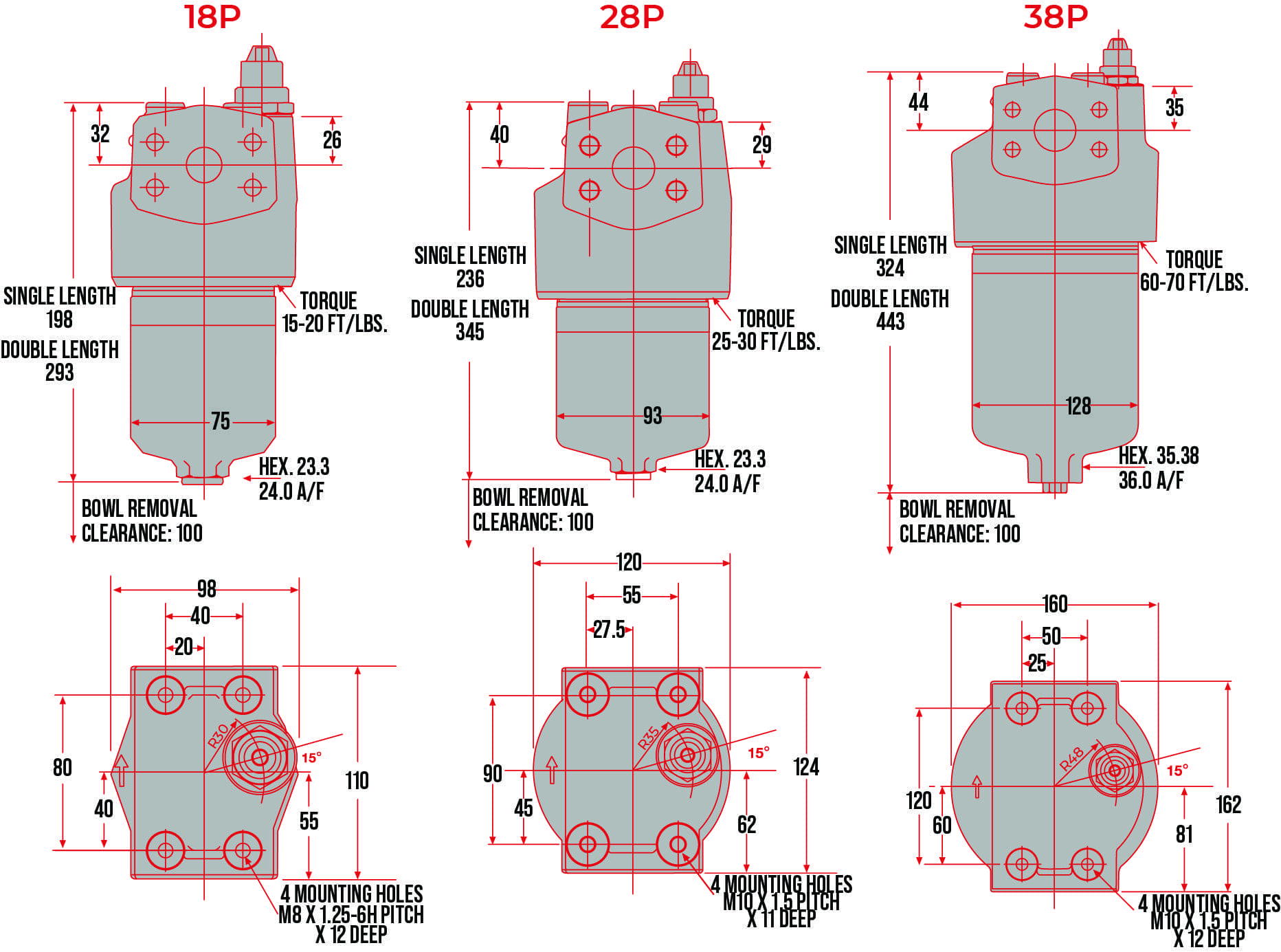

18P | 28P | 38P SERIES
| PART NUMBER | ASSEMBLIES – DESCRIPTION |
|---|---|
| 18P110QBM3MG121 (18P1-1030203011) | 18P-1, 100 LPM, 10µ Absolute Microglass, Visual Indicator, 3/4” BSP, 7 Bar By-Pass |
| 28P110QBM3MG161 (28P1-1030203011) | 28P-1, 200 LPM, 10µ Absolute Microglass, Visual Indicator, 1.0” BSP, 7 Bar By-Pass |
| 38P110QBM3MG201 (38P1-1030203011) | 38P-1, 450 LPM, 10µ Absolute Microglass, Visual Indicator, 1-1/4” BSP, 7 Bar By-Pass |
18P REPLACEMENT ELEMENTS
| PART NUMBER | DESCRIPTION |
|---|---|
| G04243 | Element, 18P-1-05Q, 05µ Abs Microglass |
| G04244 | Element, 18P-1-10Q, 10µ Abs Microglass |
| G04252 | Element 18P-2-10Q, 10µ Abs Microglass |
28P REPLACEMENT ELEMENTS
| PART NUMBER | DESCRIPTION |
|---|---|
| G04258 | Element, 28P-1-02Q, 02µ Abs Microglass |
| G04259 | Element, 28P-1-05Q, 05µ Abs Microglass |
| G04260 | Element, 28P-1-10Q, 10µ Abs Microglass |
| G04267 | Element, 28P-2-05Q, 05µ Abs Microglass |
| G04268 | Element, 28P-2-10Q, 10µ Abs Microglass |
| G04316 | Element, 28P-2-10QH, 10µ Abs Microglass, High Collapse |
38P REPLACEMENT ELEMENTS
| PART NUMBER | DESCRIPTION |
|---|---|
| G04275 | Element, 38P-1-05Q, 05µ Abs Microglass |
| G04276 | Element, 38P-1-10Q, 10µ Abs Microglass |
| G01946Q | Element, 38P-1-20Q, 20µ Abs Microglass |
