Control Valves

We supply all types of hydraulic valves: from directional control valves, to pressure control, flow control, shuttle, sequence, high pressure non-return and ball valves. From monoblock and sectional, to manifold mounted, in-line and slip-in cartridge valves. From standard on/off valves to high-dynamic proportional valves. Common to all is the combination of outstanding reliability and cost efficiency which makes them the appropriate solution for almost any operational purpose

Showing 1–9 of 33 results

Dinoil DNC65 Sectional Control Valve

DNC65 Dinoil Monoblock PDF

Stackable
Maximum flow: 70 LPM
Max. Pressure: 250 Bar
Max. Tank Pressure: 50 Bar
Max. Internal leakage: 8cc/min
Relief Valve Adjustable
Load Drop Check In Work Section
Ports: ½’’ BSPP
Dinoil MD1DLS

MD1DLS Dinoil Monoblock PDF
Maximum flow: 40 LPM
Max. Pressure: 250 Bar
Max. Tank Pressure: 50 Bar
Max. Internal Leakage: 8cc/min
Relief Valve Adjustable
No Load Drop Check
Ports: ⅜’’ BSPP
Dinoil ML Monoblock Control Valve

Dinoil ML Monoblock PDF

Maximum Flow: 45 LPM
Max. Pressure: 250 Bar
Max. Tank Pressure: 50 Bar
Max. Internal Leakage: 08 cc/min
Relief Valve Adjustable
Single Load Drop Check In Inlet
Ports: ⅜” BSPP
Contact HWL For Cable & Micro Switch Kits
HV Hydraulic 3 Way Rotary Diverter Valves

HVD3 3 Port PDF

Rotary Diverter Valve 3 Way Open On Crossover
3 Way Flow Dividers
Iron Cast Body
White Zinc Plated External Parts
Black Painted
Contact HWL for Closed Centre Diverter Valve Options
Hydrocontrol Hydraulic Foot Pedals

HCRCS Foot Pedal PDF
HCRCP Foot Pedal PDF

Ports: ¼’’BSPP
Max inlet press: 100 bar
Max inlet flow: 16 Ipm
Standard output press A02 spring 5 to 25bar
Parker CETOP 3 Solenoid Valve

Cetop 3 D1VW PDF

Mounting: NFPA D03 / DIN NG6
Max. Pressure: P. A. B Ports 345 Bar
Max. Pressure: T Port 210 Bar
Max. Flow: 80 LPM Selected Spool Configurations Only

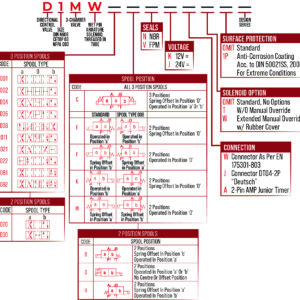

D1MW Corrosion Protection CETOP 3

D1MW CETOP3 PDF

Mounting: NFPA D03 / DIN NG06 / CETOP 03
Maximum Flow Rate: 80 LPM
Max. Pressure: Port T: 207 Bar | Ports P, A B: 350 BAR
Robust Design With Corrosion Protection For Rough Applications
Dinoil DN Monoblock Control Valve

DN Monoblock Valve PDF

Maximum Flow: 55 LPM
Max. Pressure: 300 Bar
Max. Tank Pressure: 50 Bar
Max. Internal Leakage: 08 cc/min
Relief Valve Adjustable
Single Load Drop Check In Inlet
Ports: 1/2” BSPP
Contact HWL For Cable & Micro Switch Kits
Hydrocontrol HC-D12 Sectional Control Valve

HydroControl HCD12 Sectional PDF

Stackable
Maximum Flow: 180 LPM
Maximum Press: 350 Bar
Relief Valve Adjustable
Ports: Inlet & Work ¾” BSPP
Outlet 1” BSPP
