OMT Bell housing and coupling PDF

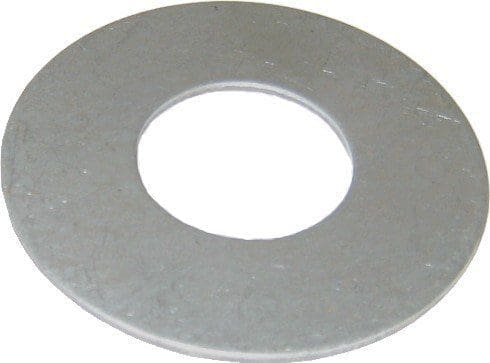

Material Zinc Plate Sheetmetal
| MODEL NUMBER | PUMP MOUNT | DIMENSIONS (OD) | DIMENSIONS (ID) |
|---|---|---|---|
| OMTRC05254 | Group 1 | 53.0 mm | 25.4 mm |
| OMTRC1254 | Group 1 | 67.5 mm | 25.4 mm |
| OMTRC0530 | Group 1.5 | 53.0 mm | 30.2 mm |
| OMTRC130 | Group 1.5 | 67.5 mm | 30.2 mm |
| OMTRC1365 | Group 2 | 67.5 mm | 36.5 mm |
| Brand |
|---|
OMT Bell housing and coupling PDF
Application Put Between Bellhousing & Tank Can Reduce Noise By Approx. 3.5 dB
Material Vulcanized Rubber Oil Resistant
Maximum Working Temperature 80°C
OMT Bell housing and coupling PDF
Four Passing Holes
Four Threaded Holes On Motor Side
Made Of Die-Cast Aluminium
Standard B3 – B5 – B14 Flange
OMT Bell housing and coupling PDF
Connections Between Gear Pumps With Rectangular Flange & Internal Combustion Engines
Made Of Die-Cast Aluminium
