Description

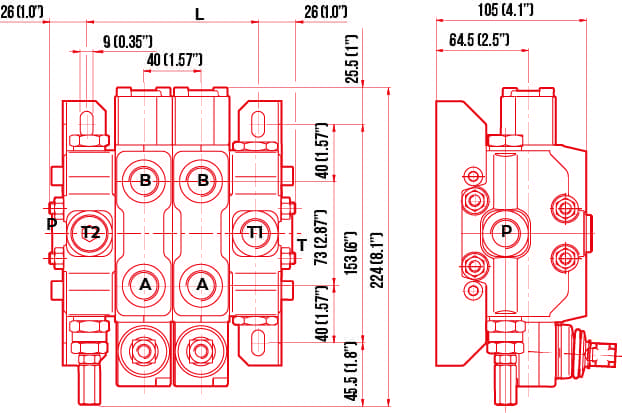

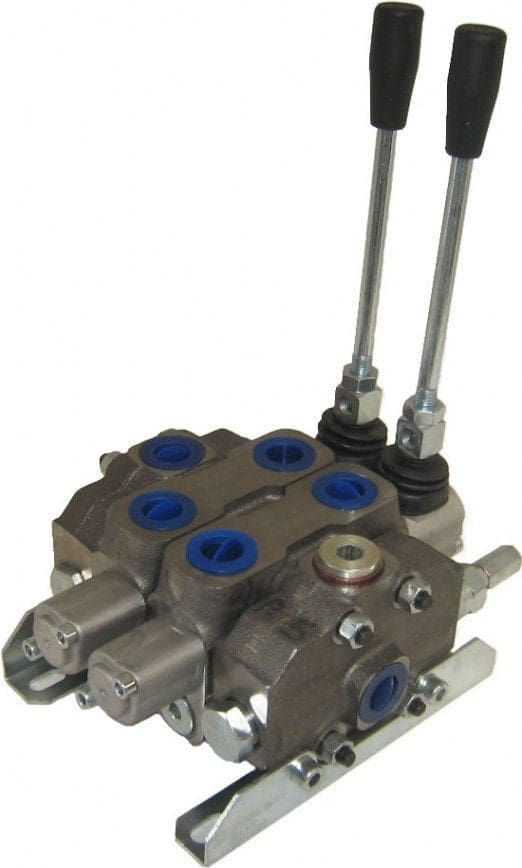

DNC65 SERIES
| Base Model | Banks | Description | Length (MM) | Weight (KG) |
|---|---|---|---|---|
| DNC65/1 | One Bank | D for D/A, S For S/A, MTR For Motor Spool | 80 | 7.5 |
| DNC65/2 | Two Bank | D for D/A, S For S/A, MTR For Motor Spool | 120 | 10.5 |
| DNC65/3 | Three Bank | D for D/A, S For S/A, MTR For Motor Spool | 160 | 13.5 |
| DNC65/4 | Four Bank | D for D/A, S For S/A, MTR For Motor Spool | 200 | 19.5 |
| DNC65/5 | Five Bank | D for D/A, S For S/A, MTR For Motor Spool | 240 | 19.5 |
| DNC65/6 | Six Bank | D for D/A, S For S/A, MTR For Motor Spool | 280 | 22.5 |
ADDER OPTIONS
| PART NUMBER | DESCRIPTION — ADDER OPTIONS |
|---|---|
| 58803 | High Pressure Carry Over Sleeve Two Required |
| 580650D01 | Detent Kit 3 Position |
| 580650B01 | Detent Kit 2 Position Push Detent |
| 580650C01 | Detent Kit 2 Position Pull Detent |
| 5XG65402001 | Airshift Kit Double Acting On/Off – Per Section |
| WPC00S34200 | Service Port Relief Valve |
SPARE PARTS
| PART NUMBER | ACCESSORIES — DESCRIPTION |
|---|---|
| 57010223 | Lever Housing |
| 535118002 | Lever M10 X 180mm |
| 29226501010 | #1 Double Acting (D/A) Spool |
| 29226503010 | #3 Motor (MTR) Spool |
| 29226504007 | #4 Single Acting (S/A) Spool Pull |
| 29226505002 | #5 Single Acting (S/A) Spool Push |
| WPD02M20200 | K Relief Valve 190-250 Bar |
| 6DF65B00342 | Work Section Double Acting |
