Description
Standard Build: 4 Bolt Magneto Mount 1 1/4’’ Keyed Shaft 7/8’’ UNO Ports
Motors: 625 / 785 / 960 Have 1 3/8’’ Keyed Shafts

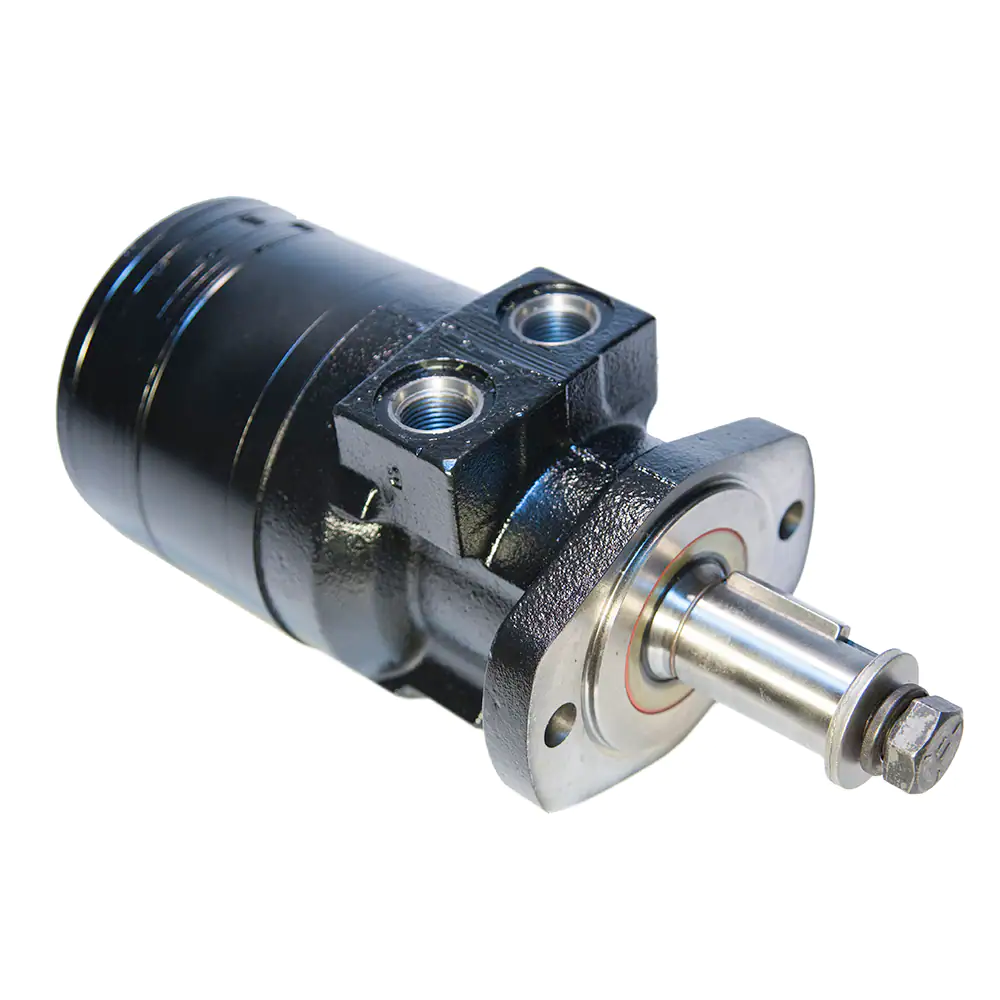

TF SERIES
| Base Model |
DESCRIPTION |
Displacement |
| TF0080MS030AAAB |
Parker HYD Motor 4.9 in3 Magneto Mount 1-1/4” Keyed Shaft |
0080 cc/rev |
| TF0100MS030AAAB |
Parker HYD Motor 6.1 in3 Magneto Mount 1-1/4” Keyed Shaft |
0100 cc/rev |
| TF0130MS030AAAB |
Parker HYD Motor 7.8 in3 Magneto Mount 1-1/4” Keyed Shaft |
0130 cc/rev |

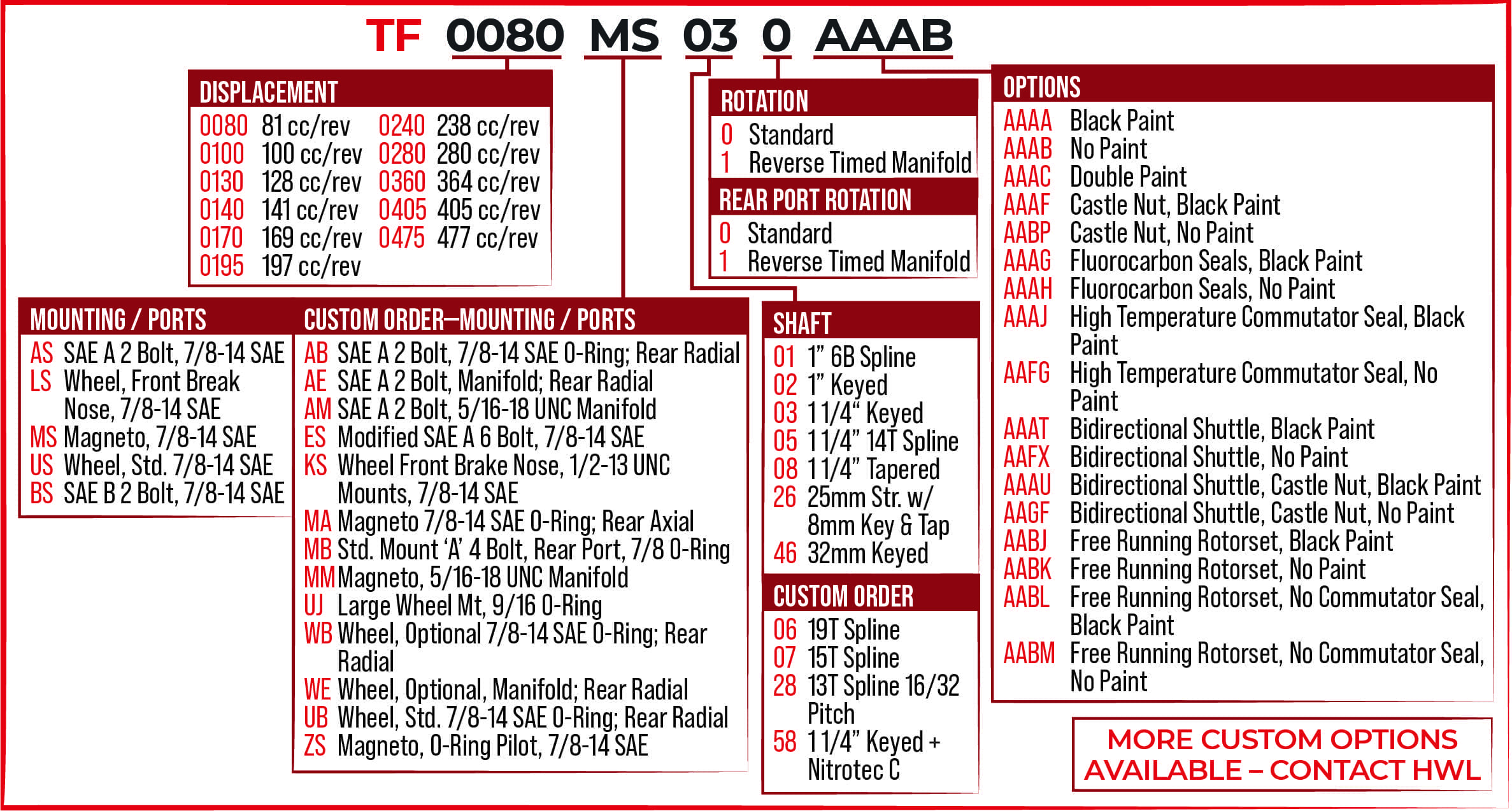

ADDER OPTIONS
| PART NUMBER |
DESCRIPTION – ADD ON SHAFT OPTIONS |
CODE |
| MB019000 |
1 1/4″ Tapered |
08 |
| MB019001 |
1″ 6B Spline |
01 |
| MB019002 |
1″ Keyed |
02 |
| MB019003 |
1 1/4″ Parallel Keyed |
03 |
| MB019005 |
1-1/4″ 14T Spline |
05 |
| MB019017 |
25mm Keyed |
26 |
| MB019016 |
32mm Keyed |
46 |
| PART NUMBER |
DESCRIPTION – Add on Mount Options |
CODE |
| ME012001A1 |
4 Bolt Magneto—Front Ports |
MS |
| ME012002A1 |
Wheel Mount–Standard—Front Ports |
US |
| ME012006A1 |
2 Bolt Mount, UNO Ports—Front Ports |
AS |
| ME012009A1 |
Wheel Brake Mount-4 Bolt—Front Ports |
LS |
SPARE PARTS
| CODE NUMBER |
DESCRIPTION — EXTRAS |
| SK000092 |
TF/TG Seal Kit |
| SK000093 |
TF/TG Seal Kit |
| BK000092 |
TF/TG Bearing Kit |
