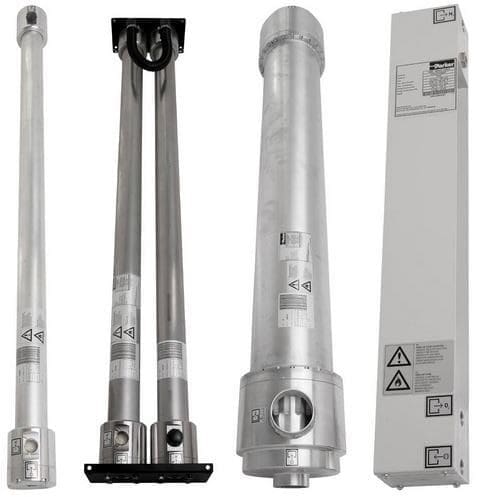

HiFluxx Nitrogen Gas Membrane Modules

Balston Hifluxx N2 MM PDF

Parker hollow-fibre membrane modules produce nitrogen gas from compressed air to offer a cost effective, reliable and safe solution to on-site nitrogen gas generation.



More nitrogen per fibre is produced from Parker hollow fibre membranes than any other in the world, together with the lowest module pressure drop, meaning fewer membranes are needed per nitrogen system. Gas is generated via a low pressure standard industrial compressor results in operational energy savings.

The correct purity is available instantly as there is no need to heat-up the membrane to open the polymer structure, consequently further reducing the energy consumption, resulting in reduced CO2 emissions.

Nitrogen is used as a clean, dry, inert gas primarily for removing oxygen from products and/or processes. Parker modules can be built into a custom-made nitrogen generator or can be integrated with your (production) process to provide an on-demand, continuous source of nitrogen gas. This nitrogen gas can be used in a wide range of industries including food, beverage, pharmaceutical, laboratory, chemical, heat treatment, electronics, transportation, oil & gas, mining and marine.

Delivering 5% to 0.5% maximum remaining oxygen content

Features / Benefits:
• Less membrane modules needed per nitrogen system
• Use of low pressure standard industrial compressor – No high pressure compressor needed to obtain required nitrogen flow
• Energy savings – Operation at a low pressure requires less energy
• Reduced CO2 emissions – No heater required to open polymer membrane structure, thus reducing the energy consumption
• Robust fibre – Most tolerant fibre to particle contamination
• Large membrane diameter – Lowest membrane module pressure drop
• Factory membrane ageing, pre-delivery – No performance decrease over time due to fibre ageing
• Quick start-up time – Required nitrogen purity is produced instantly, no time needed to heat-up
• Flexible mounting arrangements – Can be mounted horizontal or vertical
• Low noise operation – Radiated noise generated by membrane technology is extremely low
• No maintenance required – No user serviceable parts
• Small system footprint – Less modules needed to produce nitrogen requirements
* Above selection criteria are based on 97% purity and 7 barg, please refer to the product literature in the support section for additional performance conditions.
