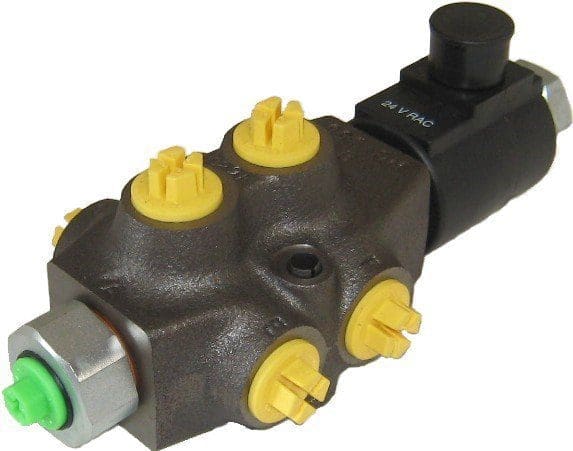

Manual Diverter Valve 6 Port Closed On Crossover
Flow: 50-120 LPM
Maximum Pressure: 350 Bar
Draining Is Recommended On Electric Valves For Pressures Over 160 Bar

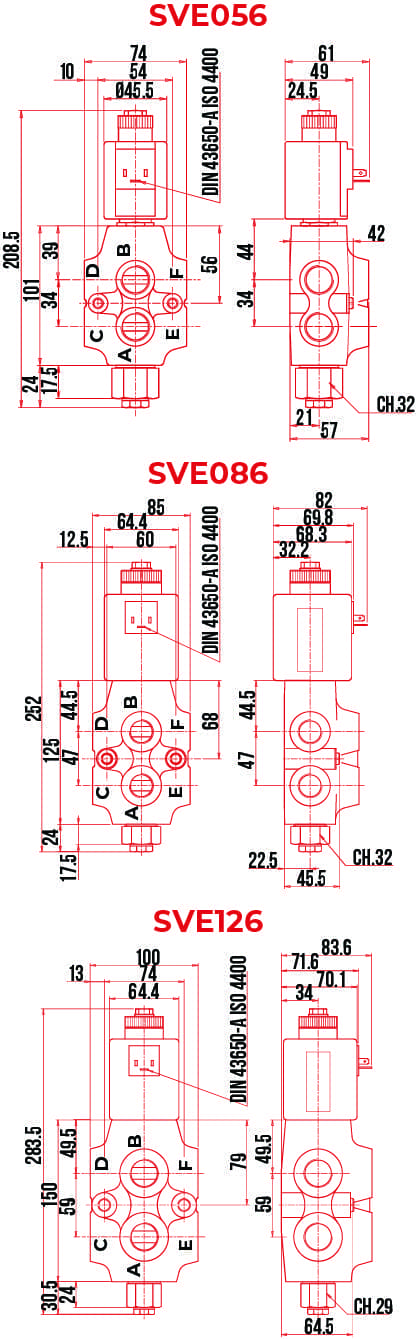

| Model Number | Ports | Max. Flow | Max. Pressure | Length |
|---|---|---|---|---|
| HCSVE056 | 3/8” BSPP | 50 LPM | 350 Bar | 208.5 mm |
| HCSVE086 | 1/2” BSPP | 80 LPM | 350 Bar | 252.0 mm |
| HCSVE126 | 3/4” BSPP | 120 LPM | 350 Bar | 283.5 mm |
| PART NUMBER | DESCRIPTION – EXTRAS | MODEL NUMBER |
|---|---|---|
| 99018 | Din plug | |
| HC413171211 | 12v DC coil | 053-056 |
| HC413171215 | 12v DC coil | 083-086-123-126 |
| HC413172410 | 24v DC coil | 053-056 |
| HC413172414 | 24v DC coil | 083-086-123-126 |
| Brand |
|---|
Pilot Pressure: 15 Bar Minimum
50 Bar Maximum
Flow: 50 – 120 LPM
Maximum Pressure: 350 Bar
Open On Crossover
Rotary Diverter Valve 3 Way Open On Crossover
3 Way Flow Dividers
Iron Cast Body
White Zinc Plated External Parts
Black Painted
Contact HWL for Closed Centre Diverter Valve Options
4 Way Flow Dividers
Iron Cast Body
White Zinc Plated External Parts
Black Painted
Contact HWL for Closed Centre Diverter Valve Options
