Description
The design of AC electric models delivers more air flow resulting in greater performance using a smaller fan, lower noise and eliminating recycling of heated air through the matrix. Performance to 0.8 kW/°C, flows to 200 LPM.
AC electric models deliver more air flow resulting in greater performance while using a smaller diameter lower noise fan. Cylindrical air jet discharge pattern eliminates recycling of heated air through the matrix.
Choice of Hi-Flow low pressure drop cooling elements on all larger models.
Highest performance in the smallest package allows use in confined spaces, universal top and bottom mount makes vertical, horizontal or inverted mounting easy. Accessory mounting feet are available.
Ease of assembly and commonality of components makes for a large array of models. 73 models are currently available from stock.

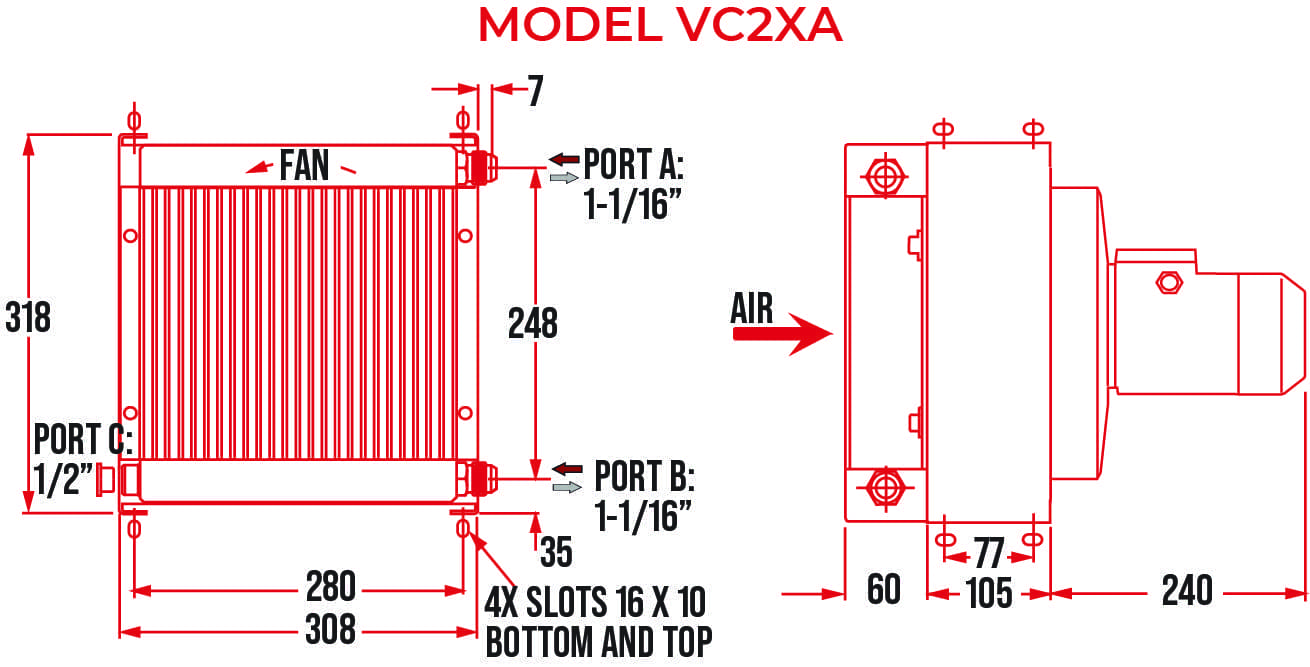

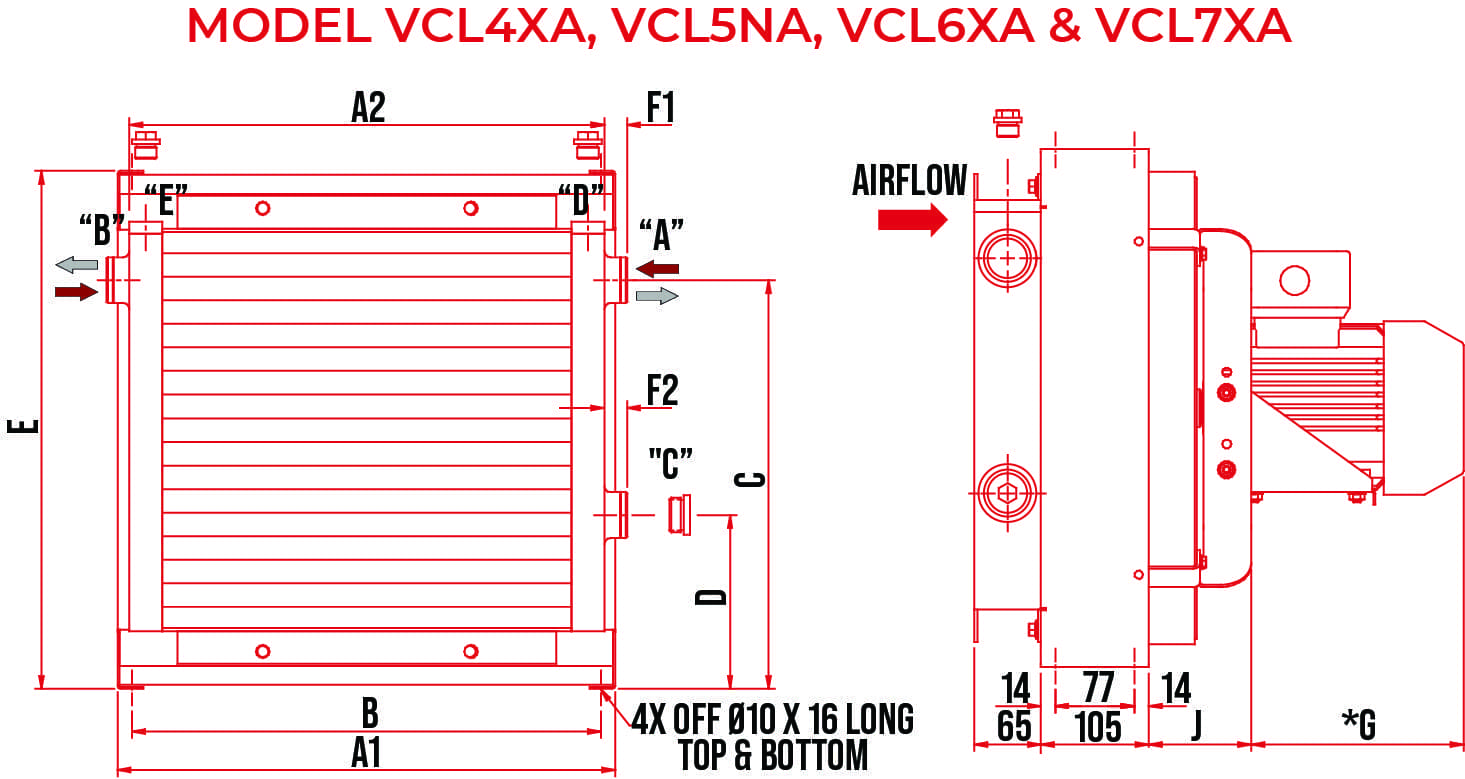

DYNACOOL VC / VCL COOLERS

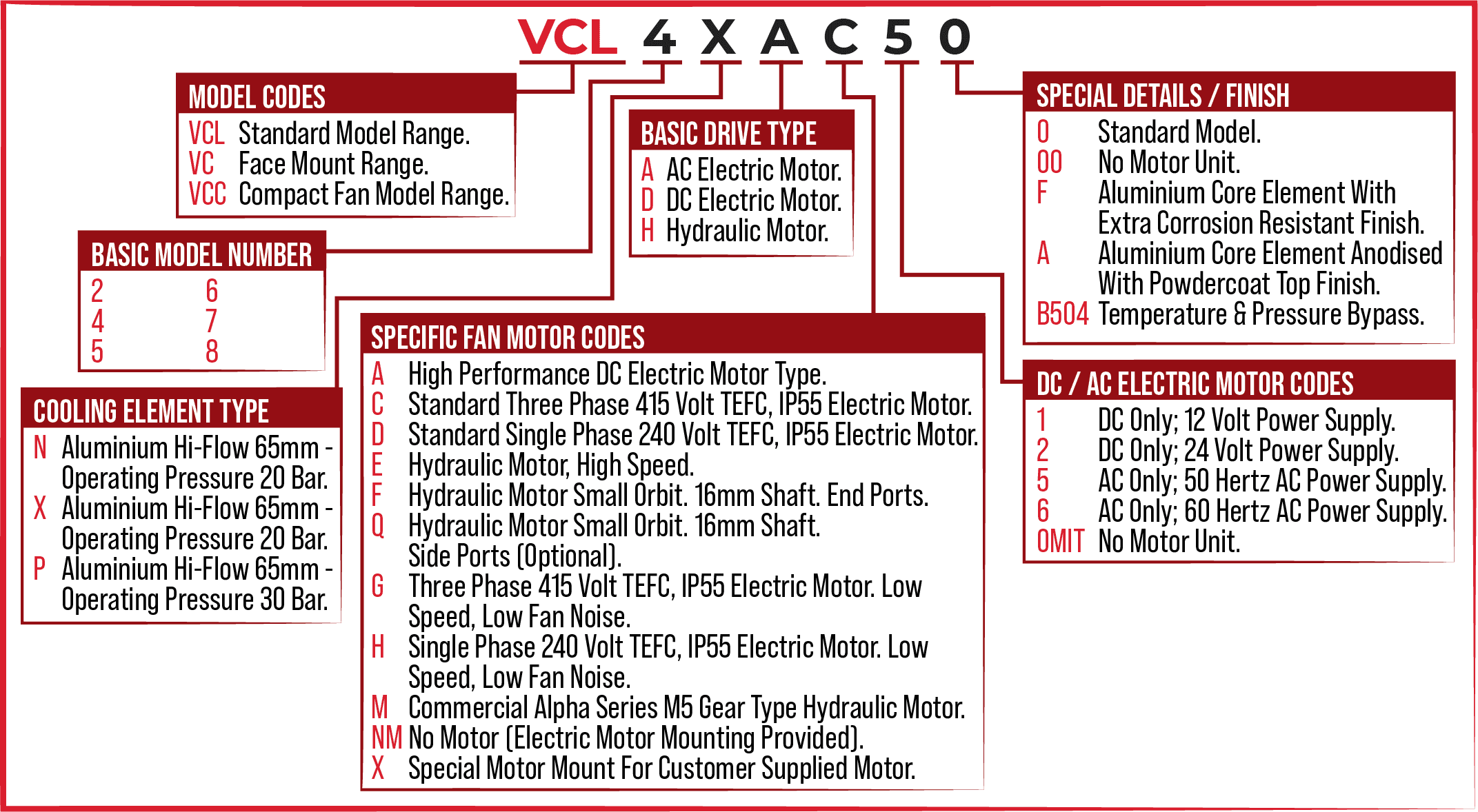

| Model Number | FAN Ø | VOLTS | PHASE | KW | SIZE | POLES |
|---|---|---|---|---|---|---|
| VC2XAC50 | 243MM | 415 | 3 | 0.25 | 63 | 2 |
| VC2XAD50 | 243MM | 240 | 1 | 0.24 | 63 | 2 |
| VC2XAG50 | 243MM | 415 | 3 | 0.18 | 63 | 4 |
| VC2XAH50 | 243MM | 240 | 1 | 0.18 | 63 | 4 |
| VCL4XAC50 | 305MM | 415 | 3 | 0.37 | 71 | 2 |
| VCL4XAD50 | 305MM | 240 | 1 | 0.37 | 71 | 2 |
| VCL4XAG50 | 305MM | 415 | 3 | 0.37 | 71 | 4 |
| VCL4XAH50 | 305MM | 240 | 1 | 0.37 | 71 | 4 |
| VCL5NAC50 | 354MM | 415 | 3 | 0.75 | 80 | 2 |
| VCL5NAD50 | 354MM | 240 | 1 | 0.75 | 80 | 2 |
| VCL5NAG50 | 354MM | 415 | 3 | 0.37 | 71 | 4 |
| VCL5NAH50 | 354MM | 240 | 1 | 0.37 | 71 | 4 |
| VCL6XAC50 | 450MM | 415 | 3 | 0.55 | 80 | 4 |
| VCL6XAD50 | 450MM | 240 | 1 | 0.55 | 80 | 4 |
| VCL6XAG50 | 450MM | 415 | 3 | 0.55 | 80 | 6 |
| VCL7XAC50 | 450MM | 415 | 3 | 0.55 | 80 | 4 |
| VCL7XAD50 | 450MM | 240 | 1 | 0.55 | 80 | 4 |
| VCL7XAG50 | 450MM | 415 | 3 | 0.55 | 80 | 6 |
| VCL8PAC50 | 354MM | 415 | 3 | 0.75 | 80 | 2 |
| VCL8PAD50 | 354MM | 240 | 1 | 0.75 | 80 | 2 |
| VCL8PAG50 | 354MM | 415 | 3 | 0.37 | 71 | 4 |
| VCL8PAH50 | 354MM | 240 | 1 | 0.37 | 71 | 4 |
