Description
Price Competitive – Economical Alternative.
Compact depth allows use in situations such as power packs & mobile equipment where space is limited and not exposed to adverse weather.
Uses the same cooling elements as our standard range VCL models.
Universal top and bottom mount makes vertical, horizontal or inverted mounting easy.
Accessory mounting feet are available.

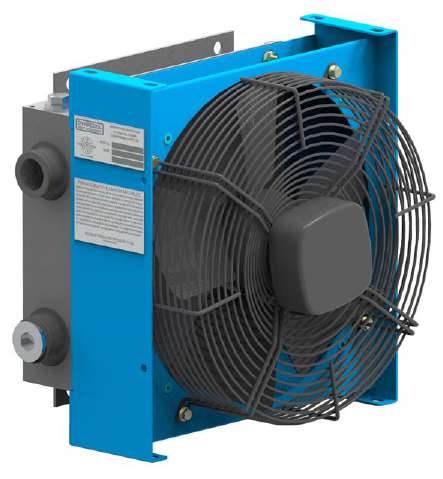

Versacool Compact Fan models in single phase 240V or 3 phase 415V 50Hz IP54.
Optional Thermal Bypass valve available for VCC4-7 models.
General Construction
Cooling Elements. Aluminium furnace brazed.
Casing and Structure. Steel (zinc seal) polyester powder coated.
Compact fan & integral motor with coated steel fan guards on all models.
Fastenings. Zinc plated.

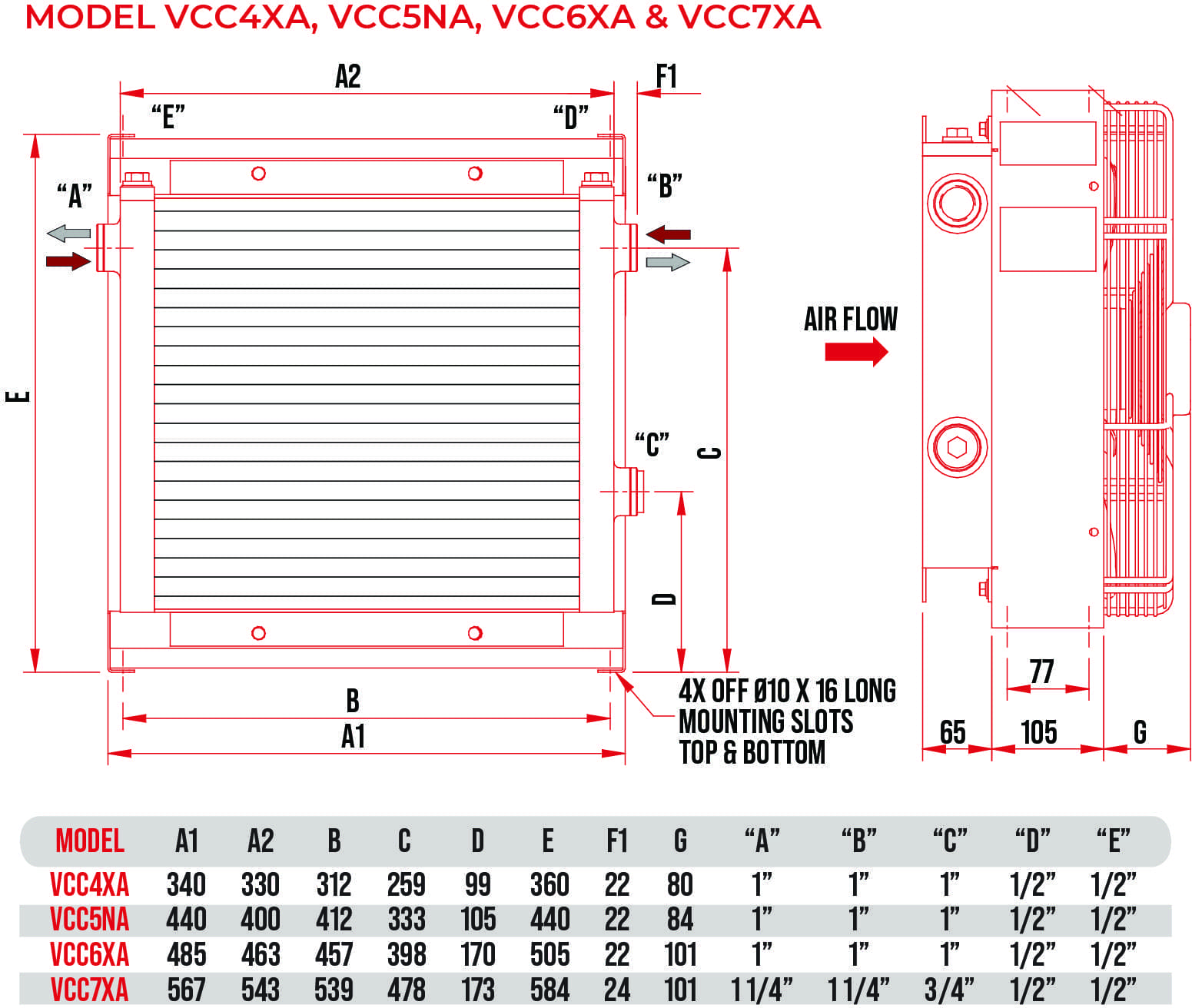

| Model Number | FAN Ø | VOLTS | PHASE | WATTS | POLES | WEIGHT |
|---|---|---|---|---|---|---|
| VCC4XAG50 | 300MM | 415 | 3 | 90 | 4 | 13KG |
| VCC4XAH50 | 300MM | 240 | 1 | 90 | 4 | 13KG |
| VCC5NAG50 | 350MM | 415 | 3 | 140 | 4 | 18KG |
| VCC5NAH50 | 350MM | 240 | 1 | 140 | 4 | 18KG |
| VCC6XAC50 | 450MM | 415 | 3 | 150 | 4 | 24KG |
| VCC6XAD50 | 450MM | 240 | 1 | 150 | 4 | 24KG |
| VCC7XAC50 | 450MM | 415 | 3 | 150 | 4 | 28KG |
| VCC7XAD50 | 450MM | 240 | 1 | 150 | 4 | 28KG |

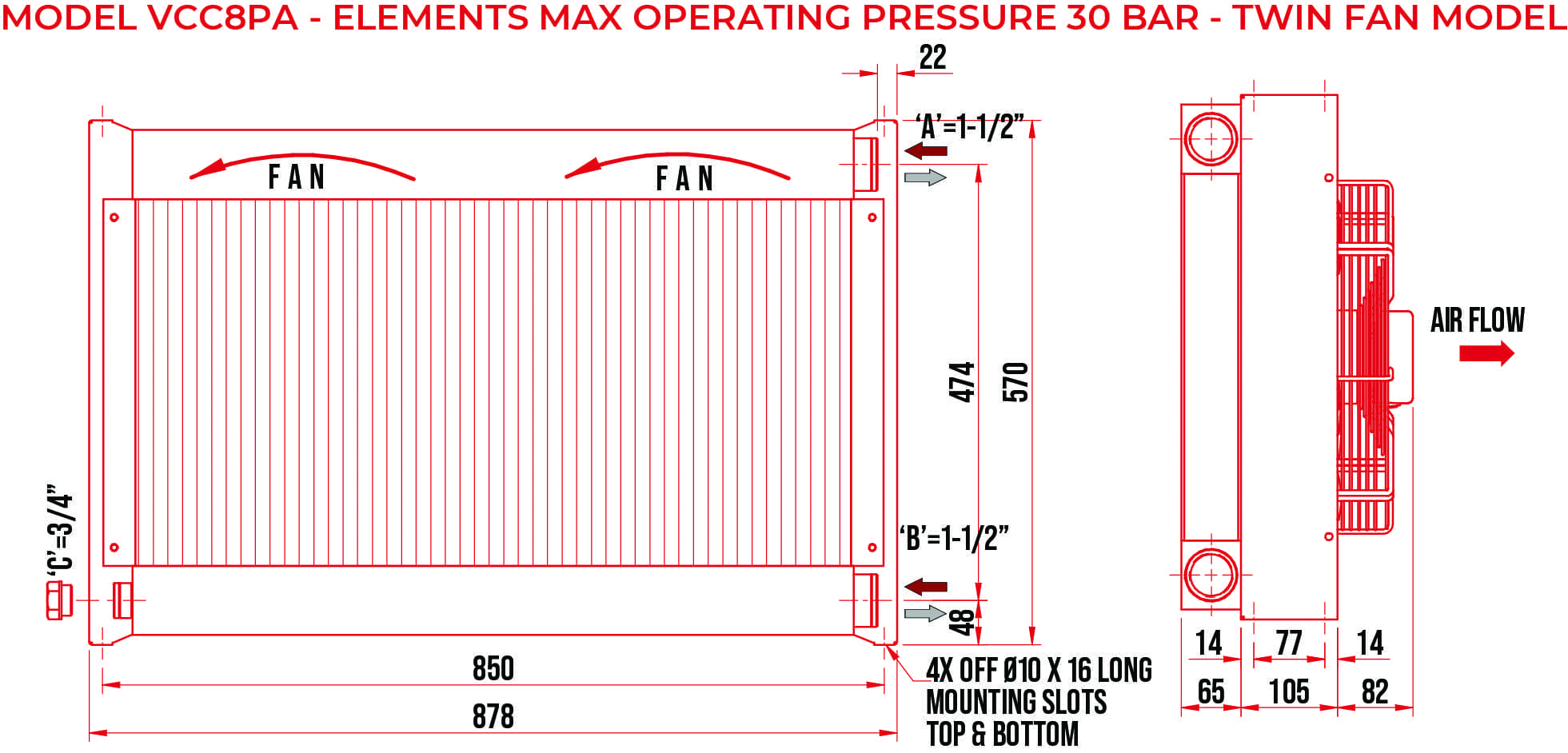

| VCC8PAG50 | 2 x 350MM | 415 | 3 | 2 x 140 | 4 | 45KG |
| VCC8PAH50 | 2 x 350MM | 240 | 1 | 2 x 140 | 4 | 45KG |
