Description
Available in over 30 standard model variants. Made with high performance aluminium cooling elements and heavy duty zinc seal powder coated casings for excellent appearance and durability. Stainless steel casing available on request. Available in most AC voltages, 50 & 60 Hz, hydraulic and air motor drive. Also used for air aftercooling applications. Core skirts on all models and core guards on larger models. Models with coaxially driven pump readily available. Performance to 9.0 kW/°C, flows to 800 LPM.
Australian designed and manufactured product with reputation for quality, reliability and technical excellence.
With over 30 years experience, constant development and testing has produced the Series A 2000 the most compact and lowest noise oil cooler in its performance range.
The largest air cooled heat exchanger inventory in the southern hemisphere means that you can demand and receive the fastest delivery of new units and service parts exactly when you need them.
DYNACOOL A 2000 Classic COOLER

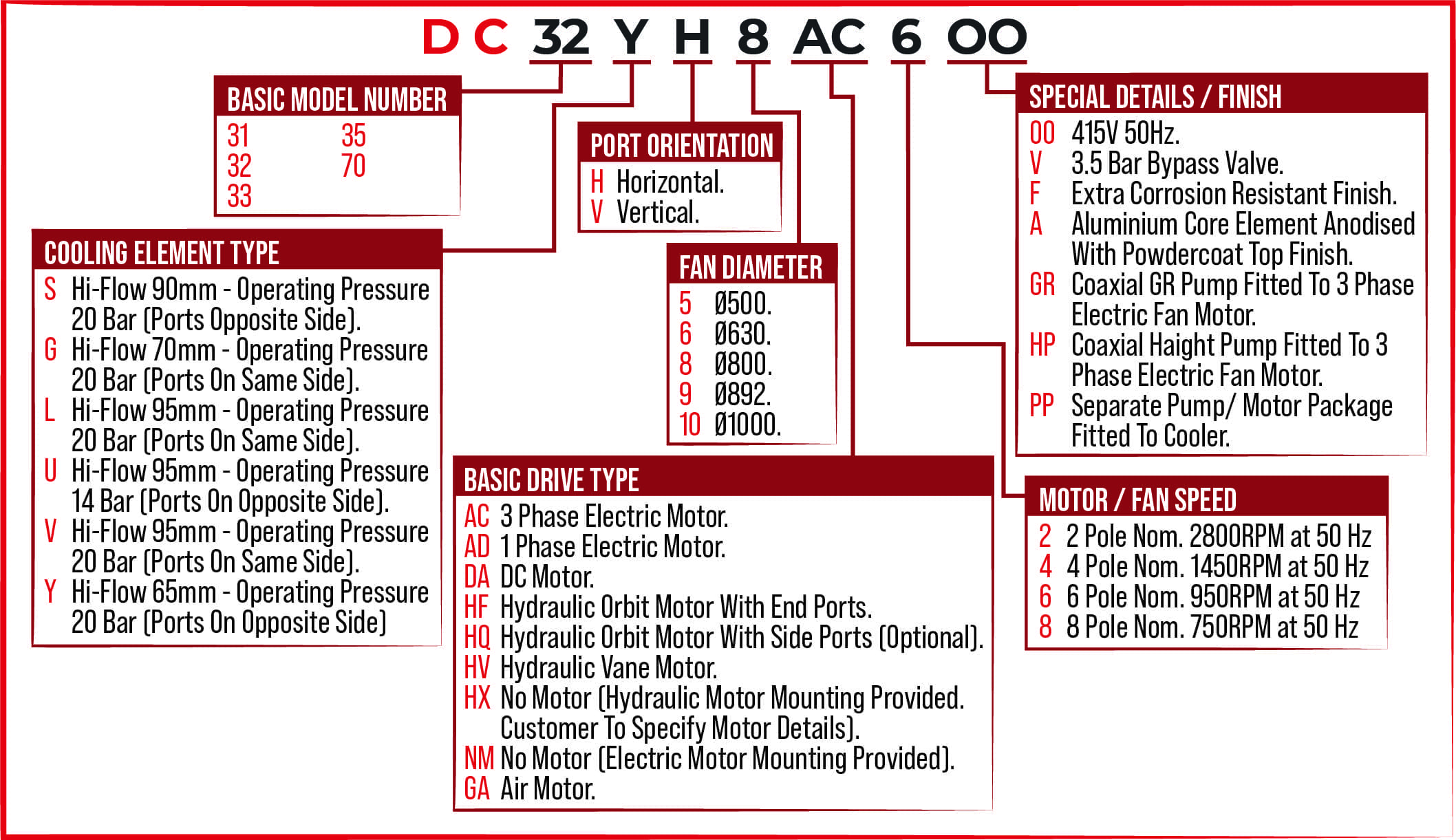

| Model Number | FAN Ø | VOLTS | PHASE | KW | SIZE | POLES |
|---|---|---|---|---|---|---|
| DC31YH5AC400 | 500MM | 415 | 3 | 0.75 | 80 | 4 |
| DC31YH6AC600 | 630MM | 415 | 3 | 1.1 | 90 | 6 |
| DC32YH6AC400 | 630MM | 415 | 3 | 1.5 | 90l | 4 |
| DC32YH8AC600 | 800MM | 415 | 3 | 2.2 | 112 | 6 |
| DC32YH8AC800 | 800MM | 415 | 3 | 1.1 | 100 | 8 |
| DC32SH6AC400 | 630MM | 415 | 3 | 1.5 | 90l | 4 |
| DC32SH8AC600 | 800MM | 415 | 3 | 2.2 | 112 | 6 |
| DC32SH8AC800 | 800MM | 415 | 3 | 1.1 | 100 | 8 |
| DC33VH6AC400 | 630MM | 415 | 3 | 1.5 | 90l | 4 |
| DC33VH8AC400 | 800MM | 415 | 3 | 3.0 | 100 | 4 |
| DC33VH8AC600 | 800MM | 415 | 3 | 2.2 | 112 | 6 |
| DC35GH8AC400 | 800MM | 415 | 3 | 3.0 | 100 | 4 |
| DC35GH8AC600 | 800MM | 415 | 3 | 2.2 | 112 | 6 |
| DC35GH8AC800 | 800MM | 415 | 3 | 1.1 | 100 | 8 |
| DC35GH9AC600 | 892MM | 415 | 3 | 2.2 | 112 | 6 |
| DC35GH9AC800 | 892MM | 415 | 3 | 1.1 | 100 | 8 |
| DC35LH9AC600 | 892MM | 415 | 3 | 2.2 | 112 | 6 |
| DC35LH9AC800 | 892MM | 415 | 3 | 1.1 | 100 | 8 |
| DC70GH10AC600 | 1000MM | 415 | 3 | 5.5 | 132m | 6 |
