Description
PRESSURE DEFINITION
For All Marzocchi Motors
P1 = Maximum continuous pressure
P2 = Maximum intermittent pressure 20 seconds every minute
P3 = Maximum peak pressure 2 seconds every minute

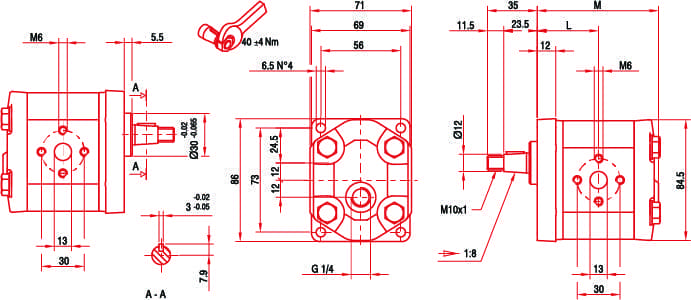

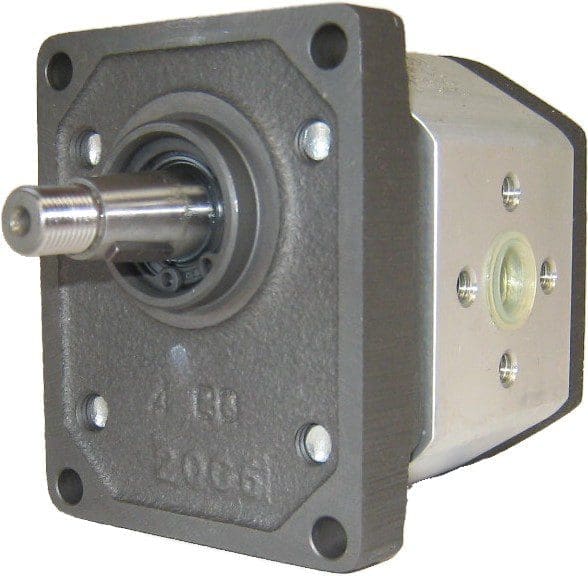

GHM1 GROUP 1.5
| MODEL NUMBER | CC/REV | Flow (LPH) | P1 MAX PRESS. | P2 MAX PRESS. | P3 MAX PRESS. |
|---|---|---|---|---|---|
| GHM1R4E1 | 2.8 | 3.9 | 270 | 260 | 290 |
| GHM1R5E1 | 3.5 | 4.9 | 270 | 260 | 290 |
| GHM1R6E1 | 4.1 | 5.9 | 270 | 260 | 290 |
| GHM1R7E1 | 5.2 | 7.4 | 260 | 250 | 275 |
| GHM1R9E1 | 6.2 | 8.8 | 260 | 250 | 275 |
| GHM1R11E1 | 7.6 | 10.8 | 230 | 220 | 245 |
| GHM1R13E1 | 9.3 | 13.3 | 210 | 200 | 225 |
| GHM1R16E1 | 11.0 | 15.7 | 200 | 190 | 215 |
SPARE PARTS
| PART NUMBER | ACCESSORIES – DESCRIPTION |
|---|---|
| 650225 | Seal Kit |
