Description
Standard Build: 4 Bolt Magneto Mount 1 1/4’’ Keyed Shaft 7/8’’ UNO Ports
Motors: 625 / 785 / 960 Have 1 3/8’’ Keyed Shafts

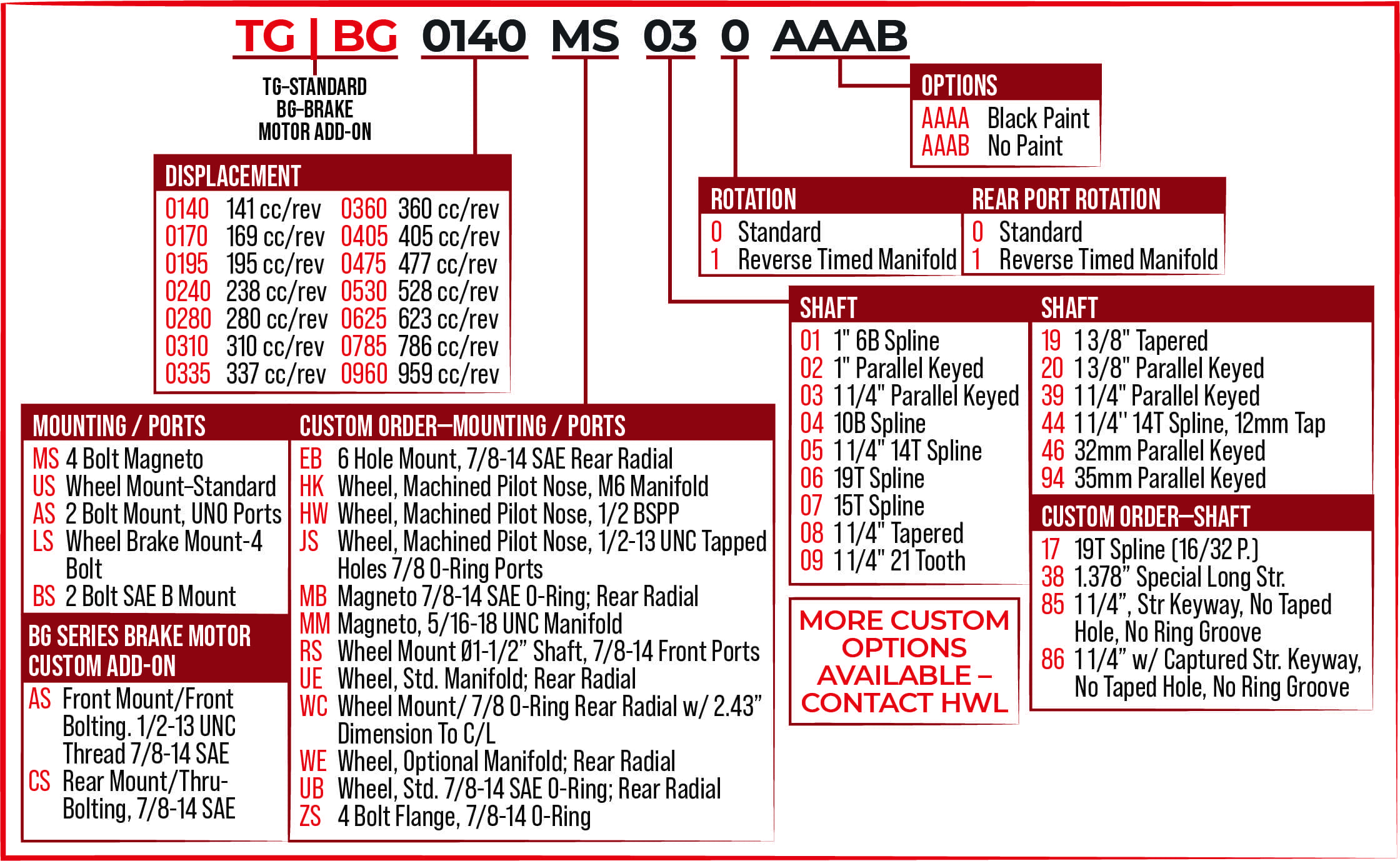

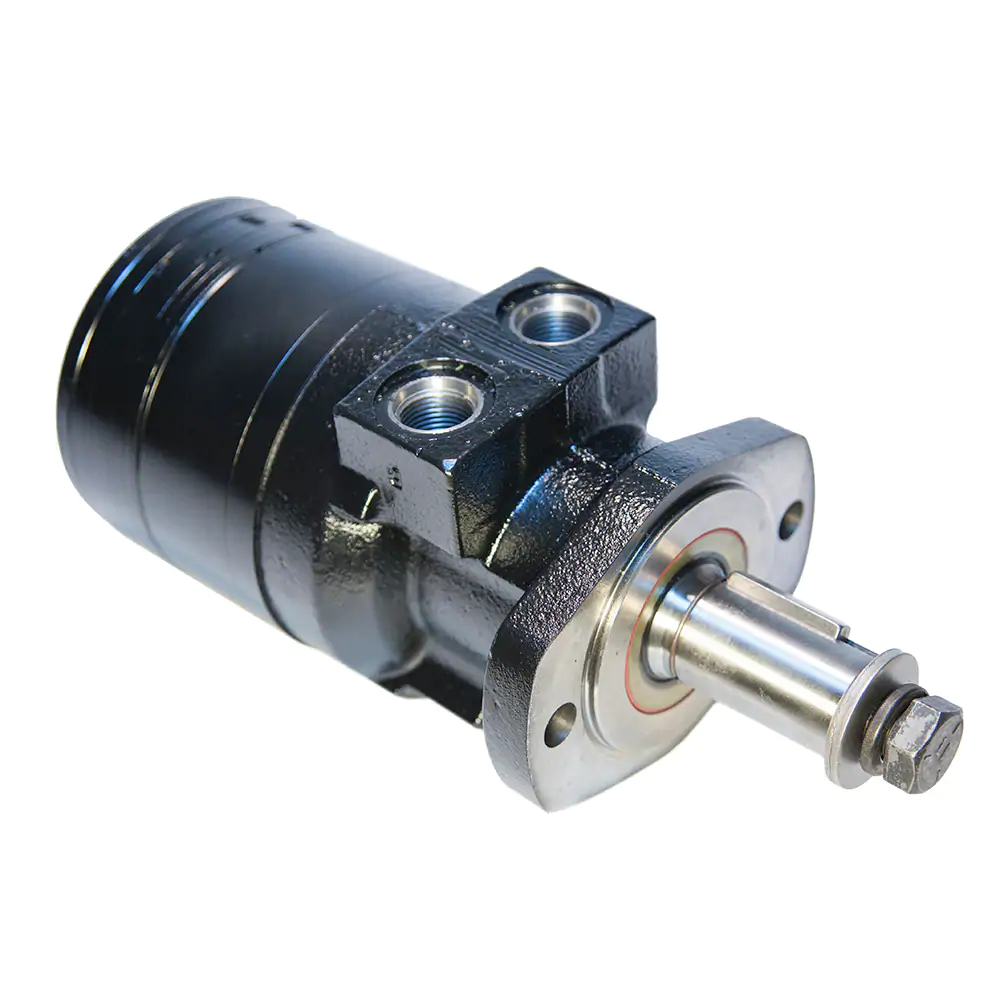

TG SERIES
| BASE MODEL |
DESCRIPTION |
Displacement |
| TG0140MS030AAAB |
Parker HYD Motor 8.6 in3 Magneto Mount 1-1/4″ Keyed Shaft |
140 cc/rev |
| TG0170MS030AAAB |
Parker HYD Motor 10.3 in3 Magneto Mount 1-1/4″ Keyed Shaft |
169 cc/rev |
| TG0195MS030AAAB |
Parker HYD Motor 11.9 in3 Magneto Mount 1-1/4″ Keyed Shaft |
195 cc/rev |
| TG0240MS030AAAB |
Parker HYD Motor 14.5 in3 Magneto Mount 1-1/4″ Keyed Shaft |
237 cc/rev |
| TG0280MS030AAAB |
Parker HYD Motor 17.1 in3 Magneto Mount 1-1/4″ Keyed Shaft |
280 cc/rev |
| TG0335MS030AAAB |
Parker HYD Motor 20.6 in3 Magneto Mount 1-1/4″ Keyed Shaft |
337 cc/rev |
| TG0405MS030AAAB |
Parker HYD Motor 24.7 in3 Magneto Mount 1-1/4″ Keyed Shaft |
405 cc/rev |
| TG0475MS030AAAB |
Parker HYD Motor 29.1 in3 Magneto Mount 1-1/4″ Keyed Shaft |
476 cc/rev |
| TG0530MS030AAAB |
Parker HYD Motor 32.3 in3 Magneto Mount 1-1/4″ Keyed Shaft |
529 cc/rev |
| TG0625MS200AAAB |
Parker HYD Motor 38.0 in3 1-3/8″ Keyed Shaft |
624 cc/rev |
| TG0785MS200AAAB |
Parker HYD Motor 48.0 in3 1-3/8″ Keyed Shaft |
786 cc/rev |
| TG0960MS200AAAB |
Parker HYD Motor 58.5 in3 Magneto Mount 1-3/8″ Keyed Shaft |
958 cc/rev |
| BG0335CS080AAMP |
BG Rear Brake Mount Thru-Bolt, 7/8-14 SAE Ports, 1-1/4” Tapered Shaft |
337 cc/rev |
ADDER OPTIONS
| PART NUMBER |
DESCRIPTION – ADD ON SHAFT OPTIONS |
CODE |
| ME019001 |
1″ 6B Spline |
01 |
| ME019002 |
1″ Parallel Keyed |
02 |
| ME019003 |
1 1/4″ Parallel Keyed |
03 |
| ME019004 |
10B Spline |
04 |
| ME019005 |
1 1/4″ 14T Spline |
05 |
| ME019006 |
19T Spline |
06 |
| ME019007 |
15T Spline |
07 |
| ME019000 |
1 1/4″ Tapered |
08 |
| ME019009 |
1 1/4″ 21 Tooth |
09 |
| ME019010 |
1 3/8″ Tapered |
19 |
| ME019011 |
1 3/8″ Parallel Keyed |
20 |
| ME019018 |
1 1/4″ Parallel Keyed |
39 |
| ME019013 |
1 1/4” 14T Spline, 12mm Tap |
44 |
| ME019024 |
32mm Parallel Keyed |
46 |
| ME019066 |
35mm Parallel Keyed |
94 |
| PART NUMBER |
DESCRIPTION – Add on Mount Options |
CODE |
| ME012001A1 |
4 Bolt Magneto—Front Ports |
MS |
| ME012002A1 |
Wheel Mount–Standard—Front Ports |
US |
| ME012006A1 |
2 Bolt Mount, UNO Ports—Front Ports |
AS |
| ME012009A1 |
Wheel Brake Mount-4 Bolt—Front Ports |
LS |
| ME012019A1 |
2 Bolt SAE B Mount—Front Ports |
BS |
|
BG Series—Front Mount 1/2-13 UNC Thd 7/8-14 SAE |
AS |
|
BG Series—Rear Mount Thru-Bolt 7/8-14 SAE |
CS |
SPARE PARTS
| CODE NUMBER |
DESCRIPTION — EXTRAS |
| SK000092 |
TF/TG Seal Kit |
| SK000093 |
TF/TG Seal Kit |
| BK000092 |
TF/TG Bearing Kit |
| SK000156 |
Seal Kit BH Brake Motor |
| ME019038 |
BG Shaft 1.25″ Tapered |
