Description

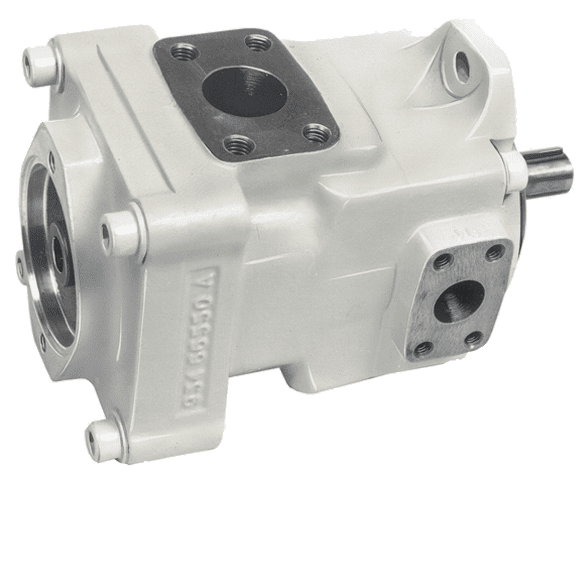

T6CR SERIES – THRU-DRIVE
| SERIES RING SIZE | CC/REV | MIN. SPEED | MAX. SPEED | INT. PRESSURE | CONT. PRESSURE |
|---|---|---|---|---|---|
| 003 | 10.8 | 600 RPM | 2200 RPM | 275 BAR | 240 BAR |
| 005 | 17.2 | 600 RPM | 2200 RPM | 275 BAR | 240 BAR |
| 006 | 21.3 | 600 RPM | 2200 RPM | 275 BAR | 240 BAR |
| 008 | 26.4 | 600 RPM | 2200 RPM | 275 BAR | 240 BAR |
| 010 | 34.1 | 600 RPM | 2200 RPM | 275 BAR | 240 BAR |
| 012 | 37.1 | 600 RPM | 2200 RPM | 275 BAR | 240 BAR |
| 014 | 46.0 | 600 RPM | 2200 RPM | 275 BAR | 240 BAR |
| 017 | 58.3 | 600 RPM | 2200 RPM | 275 BAR | 240 BAR |
| 020 | 63.8 | 600 RPM | 2200 RPM | 275 BAR | 240 BAR |
| 022 | 70.3 | 600 RPM | 2200 RPM | 275 BAR | 240 BAR |
| 025 | 79.3 | 600 RPM | 2200 RPM | 275 BAR | 240 BAR |
| 028 | 88.8 | 600 RPM | 2200 RPM | 210 BAR | 160 BAR |
| 031 | 100.0 | 600 RPM | 2200 RPM | 210 BAR | 160 BAR |
SPARE PARTS
| PART NUMBER | ACCESSORIES – DESCRIPTION |
|---|---|
| S24-26345 | #1 Shaft. SAE BB 1.00″ Parallel Keyed |
| S24-26344 | #2 Shaft. Non SAE .875″ Parallel Keyed |
| S24-26346 | #3 Shaft. SAE B 13T Spline |
| S24-26347 | #4 Shaft. SAE BB 15T Spline |
| S24-26348 | #5 Shaft. Non SAE 1.25″ Parallel Keyed |
| S24-26387 | T6CR Seal Kit |
| 034-66537 | T6CR SAE A 9T Coupling |
| 034-66652 | T6CR SAE A – SAE J 498 b 16/32 11T Coupling |
| 034-66649 | T6CR SAE A – SAE B 13T Coupling |
| 034-66540 | T6CR SAE B – SAE B 13T Coupling |
| 034-66543 | T6CR SAE B-B Coupling |
| 034-66546 | T6CR SAE C Coupling |
| S24-73903 | SAE A Mounting Adaptor |
| S24-73904 | SAE B Mounting Adaptor |
| S24-49851 | SAE C Mounting Adaptor |
