Description

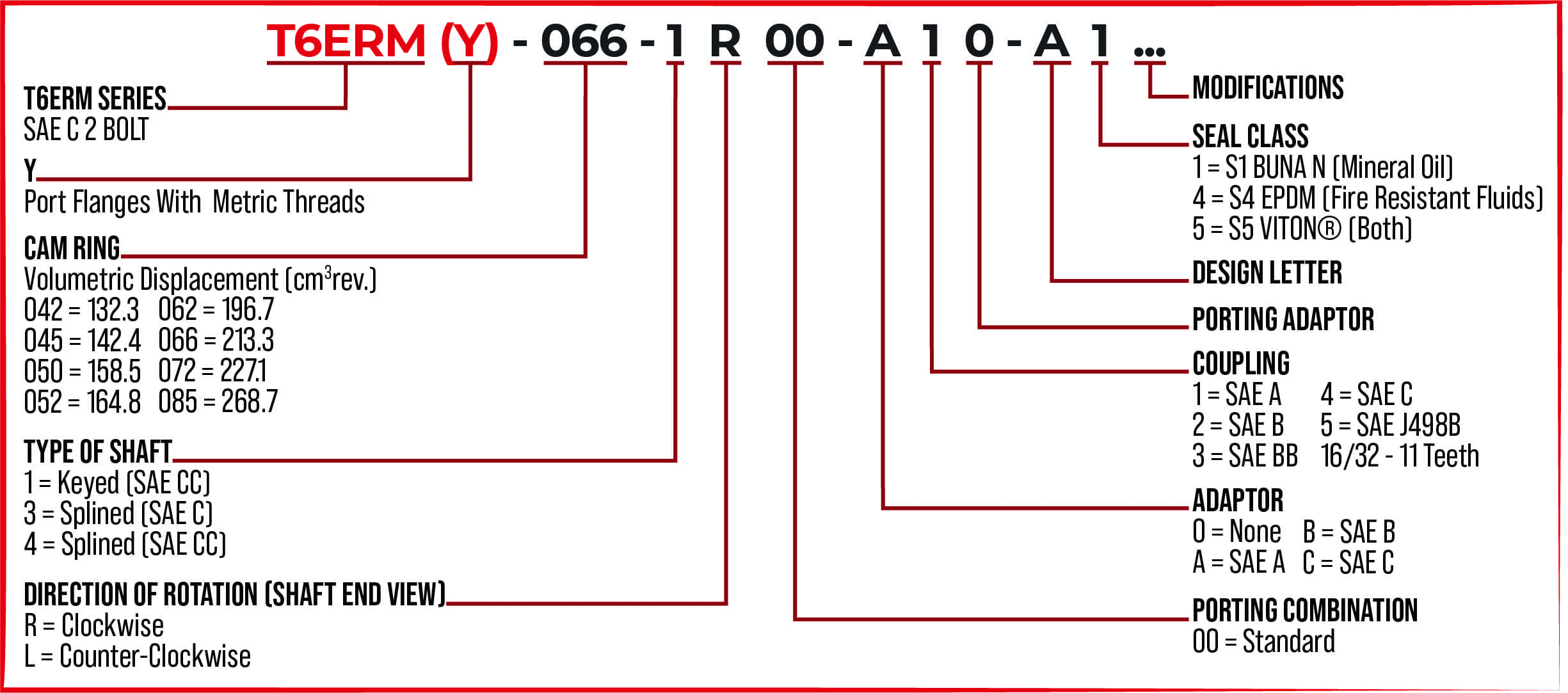

T6ERM – Thru-Drive
| SERIES RING SIZE | CC/REV | MIN. SPEED | MAX. SPEED | INT. PRESSURE | CONT. PRESSURE |
|---|---|---|---|---|---|
| 042 | 132.3 | 600 RPM | 2200 RPM | 240 BAR | 210 BAR |
| 045 | 142.4 | 600 RPM | 2200 RPM | 240 BAR | 210 BAR |
| 050 | 158.5 | 600 RPM | 2200 RPM | 240 BAR | 210 BAR |
| 052 | 164.8 | 600 RPM | 2200 RPM | 240 BAR | 210 BAR |
| 054 | 171.0 | 600 RPM | 2200 RPM | 240 BAR | 210 BAR |
| 057 | 183.3 | 600 RPM | 2200 RPM | 240 BAR | 210 BAR |
| 062 | 196.7 | 600 RPM | 2200 RPM | 240 BAR | 210 BAR |
| 066 | 213.3 | 600 RPM | 2200 RPM | 240 BAR | 210 BAR |
| 072 | 227.1 | 600 RPM | 2200 RPM | 240 BAR | 210 BAR |
| 085 | 268.7 | 600 RPM | 2000 RPM | 90 BAR | 75 BAR |
Spare Parts
| PART NUMBER | ACCESSORIES – DESCRIPTION |
|---|---|
| S24-26339 | #1 Shaft. SAE CC 1.50″ Parallel Keyed |
| S24-49361 | #3 Shaft. SAE C Splined 14T |
| S24-26340 | #4 Shaft. SAE CC 17T Splined |
| S24-26381 | T6ER Seal Kit |
| 034-66539 | T6ER SAE A 9T Coupling |
| 034-66542 | T6ER SAE B – SAE B 13T Coupling |
| 034-66545 | T6ER SAE B-B Coupling |
| 034-66548 | T6ER SAE C Coupling |
| 034-66654 | T6ER SAE J 498 B 16/32 11T Coupling |
| S24-73903 | SAE A Mounting Adaptor |
| S24-73904 | SAE B Mounting Adaptor |
| S24-49851 | SAE C Mounting Adaptor |
