Additional information
| Brand |
|---|

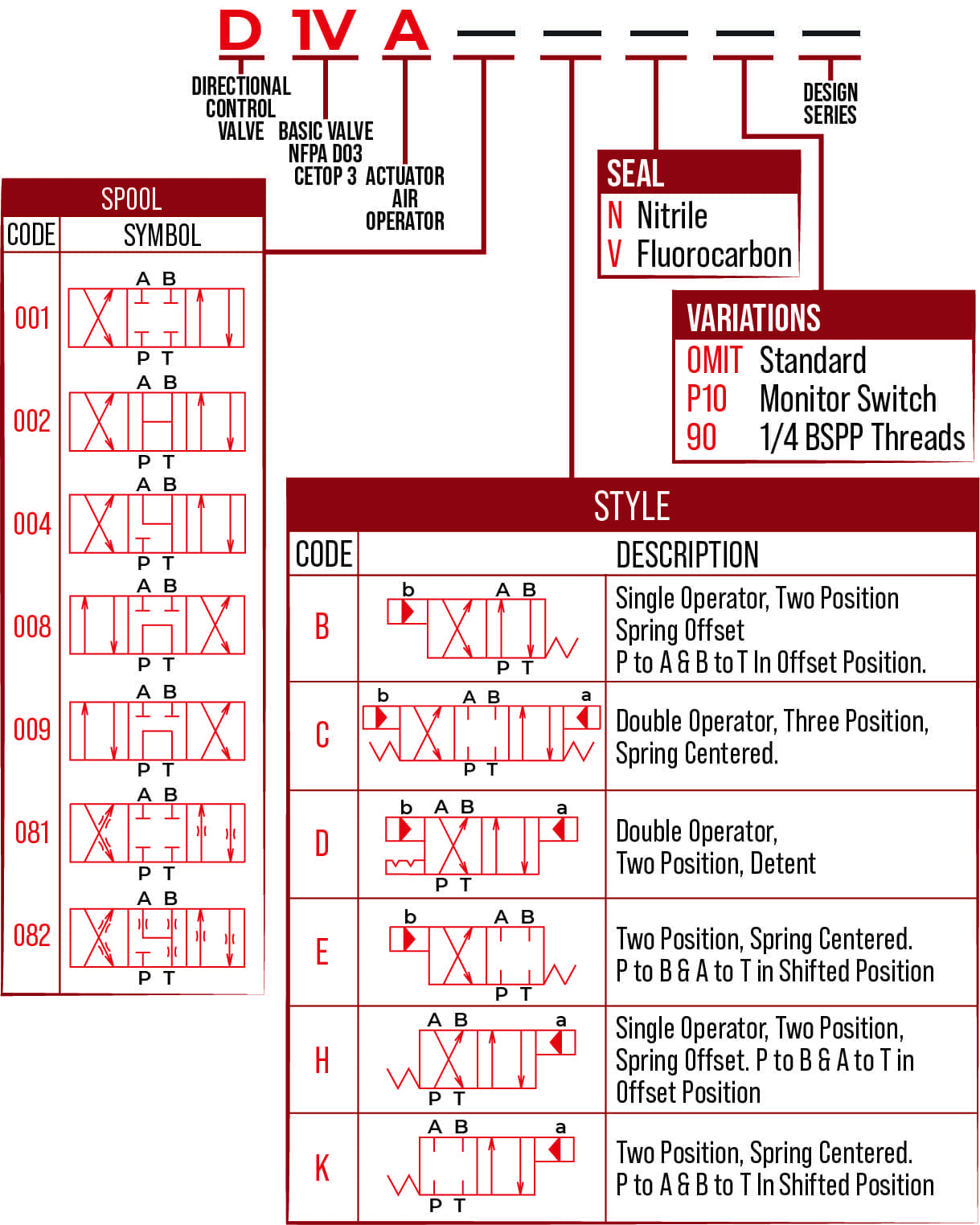

D1VA Air Operated Cetop 3
Mounting: NFPA D03 / DIN NG6
Max. Pressure: P. A. B Ports 345 Bar
Max. Pressure: T Port 34 Bar
Pilot Pressure Min.: 4.1 Bar (60 PSI)
Pilot Pressure Max.: 10.2 Bar (150 PSI)
Related products
-
Parker CETOP 3 Solenoid Valve
Mounting: NFPA D03 / DIN NG6
Max. Pressure: P. A. B Ports 345 Bar
Max. Pressure: T Port 210 Bar
Max. Flow: 80 LPM Selected Spool Configurations Only -
Parker D1VL Lever Operated Cetop 3
Mounting: NFPA D03 / DIN NG6
Maximum Pressure: P. A. B Ports 345 Bar
Maximum Pressure: T Port 34 Bar -

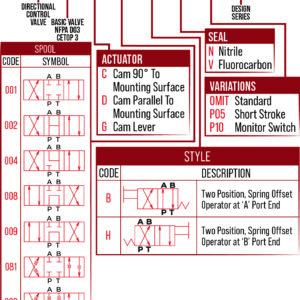

D1VC Cam Operated Cetop 3
