Description
HCSVM206

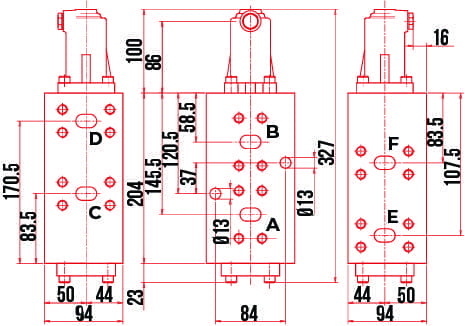

| Model Number | Ports | Max. Flow | Max. Pressure | Length |
|---|---|---|---|---|
| HCSVM206HYD | 1” Code 62 | 250 LPM | 350 Bar | 170.5 mm |

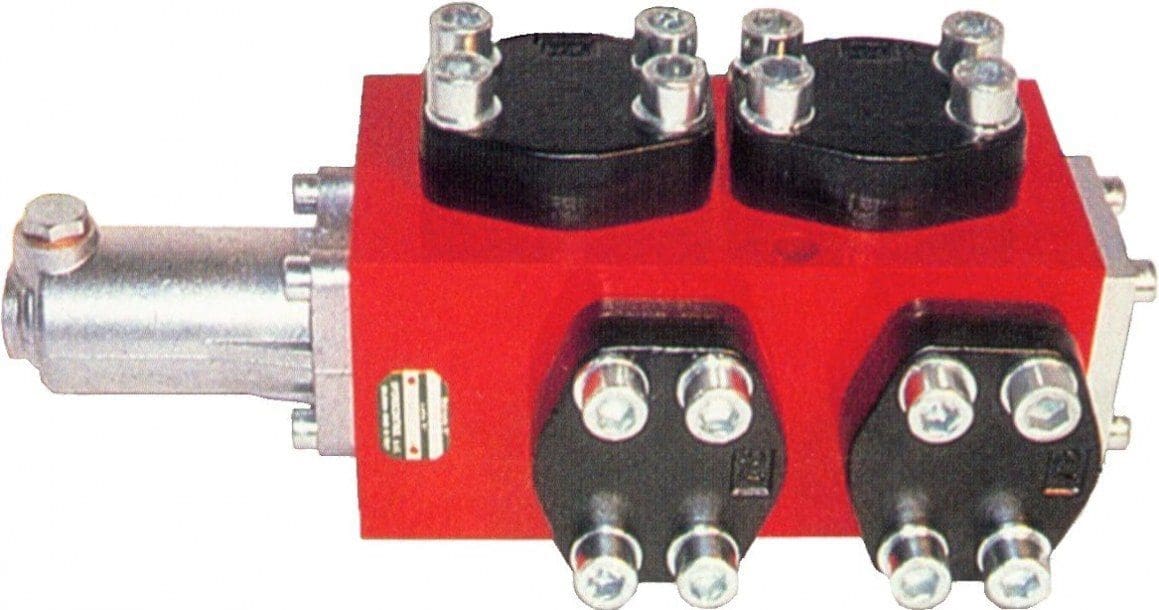

HYDRAULIC SHIFT DIVERTER VALVE 6 PORT
Pilot Pressure: 15 Bar Minimum
50 Bar Maximum
Flow: 50 – 120 LPM
Maximum Pressure: 350 Bar
Open On Crossover
Additional information
| Brand |
|---|
