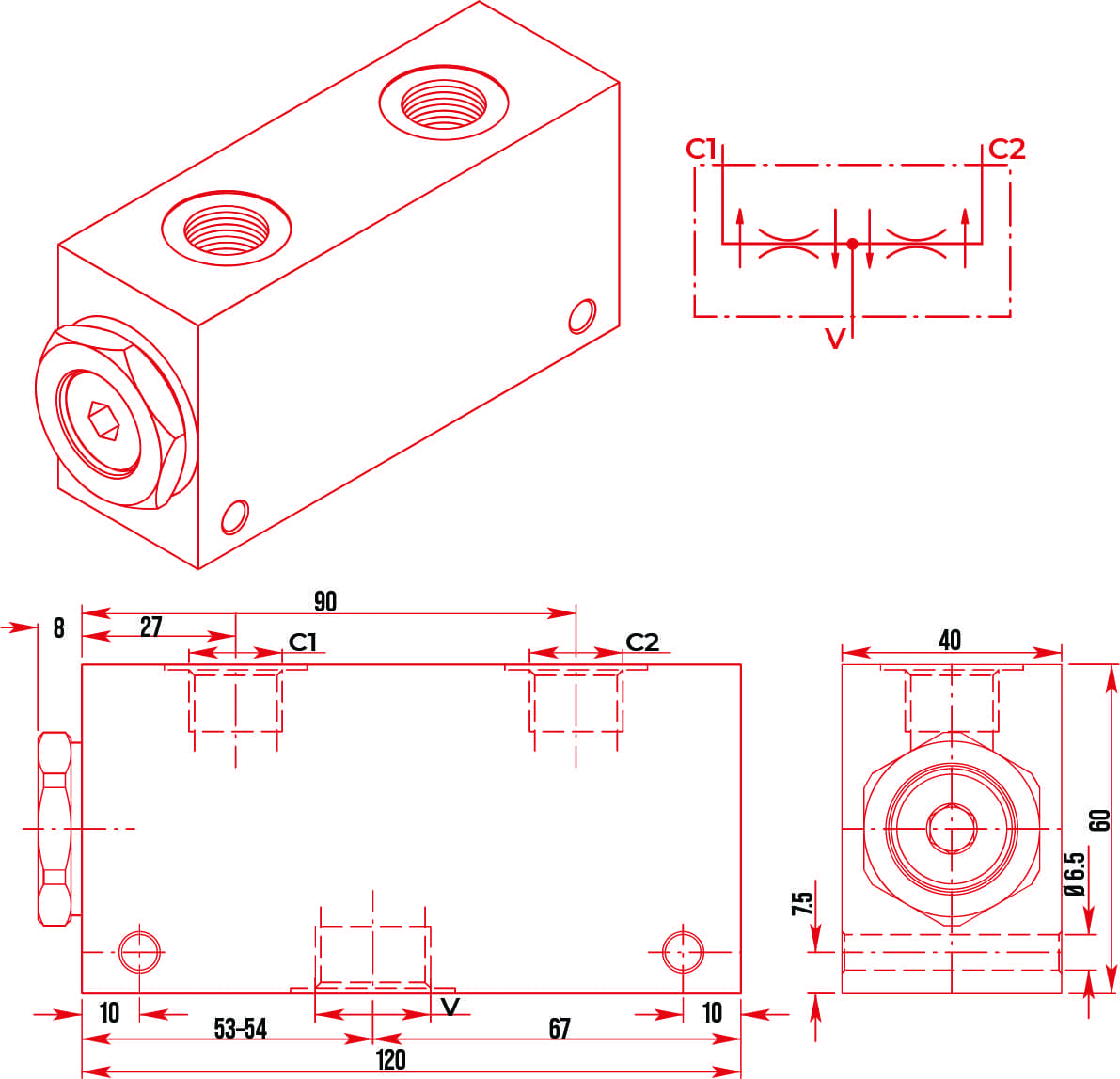

CBFDFR Flow Divider Combiner PDF
Maximum Operating Pressure: 300 Bar
Maximum Flow Rate: 7 LPM–70 LPM
Flow Ratio 50% X 50%
Flow Divider Combiner
| Model Number | Ports | Max. Flow | Max. PRESSURE | LENGTH |
|---|---|---|---|---|
| CBFDFR3802 | 3/8” BSPP | 7 – 12 LPM | 300 Bar | 120 mm |
| CBFDFR3803 | 3/8” BSPP | 13 – 25 LPM | 300 Bar | 120 mm |
| CBFDFR1204 | 1/2” BSPP | 26 – 40 LPM | 300 Bar | 120 mm |
| CBFDFR1205 | 1/2” BSPP | 40 – 70 LPM | 300 Bar | 120 mm |
