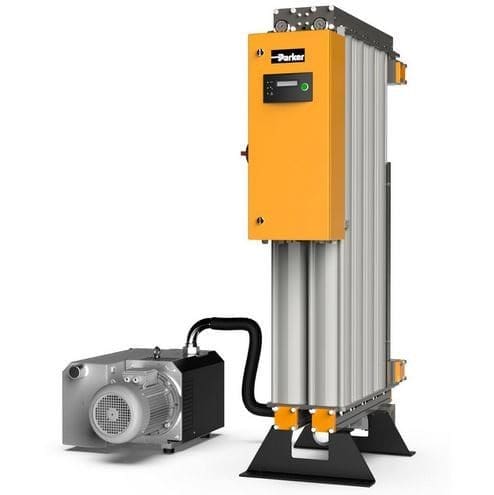

PNEUDRI MXLE Large Flow Low Energy Heatless Compressed Air Dryer


The PNEUDRI MXLE compressed air dryer has been specifically designed to provide all of the benefits of the PNEUDRI MX heatless adsorption dryer with the additional benefits of lower energy costs and lower environmental impact via its vacuum regeneration method, allowing around 17% more of the generated clean, dry compressed air to be used across the plant.
PNEUDRI MXLE compressed air dryer Includes pre and post OIL-X filters which have been third party tested in accordance with ISO12500-1 / ISO8573-4 resulting in delivered air quality in accordance with ISO8573-1.
PNUEDRI MXLE also offers the extra security of a full back up mode, in the unlikely event of a fault occurring with the vacuum pump, the dryer can be operated in full heatless mode to keep the plant operational.
At full load conditions, PNEUDRI MXLE has an average 60% lower energy consumption than a comparative heatless dryer and an average 39% lower energy consumption than a comparative heat regenerative dryer. These energy savings increase in periods of low air demand due to the integrated Energy Saving Technology (EST) which is fitted as standard.
The compressed air dryer is manufactured with materials of construction that meet FDA Title 21 and are EC1935-2004 exempt; meaning the PNEUDRI MXLE compressed air dyer is ideally suited for food, beverage and pharmaceutical industries and applications.

• Energy saving EST as standard
• 3rd Party validated performance
• Pre/post filtration included
• Corrosion protected

• High quality compressed air to ISO8573-1 classifications
• -40°C / -70°C PDP also controls microbiological growth
• Improves production efficiency and reduces maintenance costs and downtime
• Up to 60% energy reductions
• Easy and flexible installation – Modular design
• FDA Title 21 approved

Additional information
