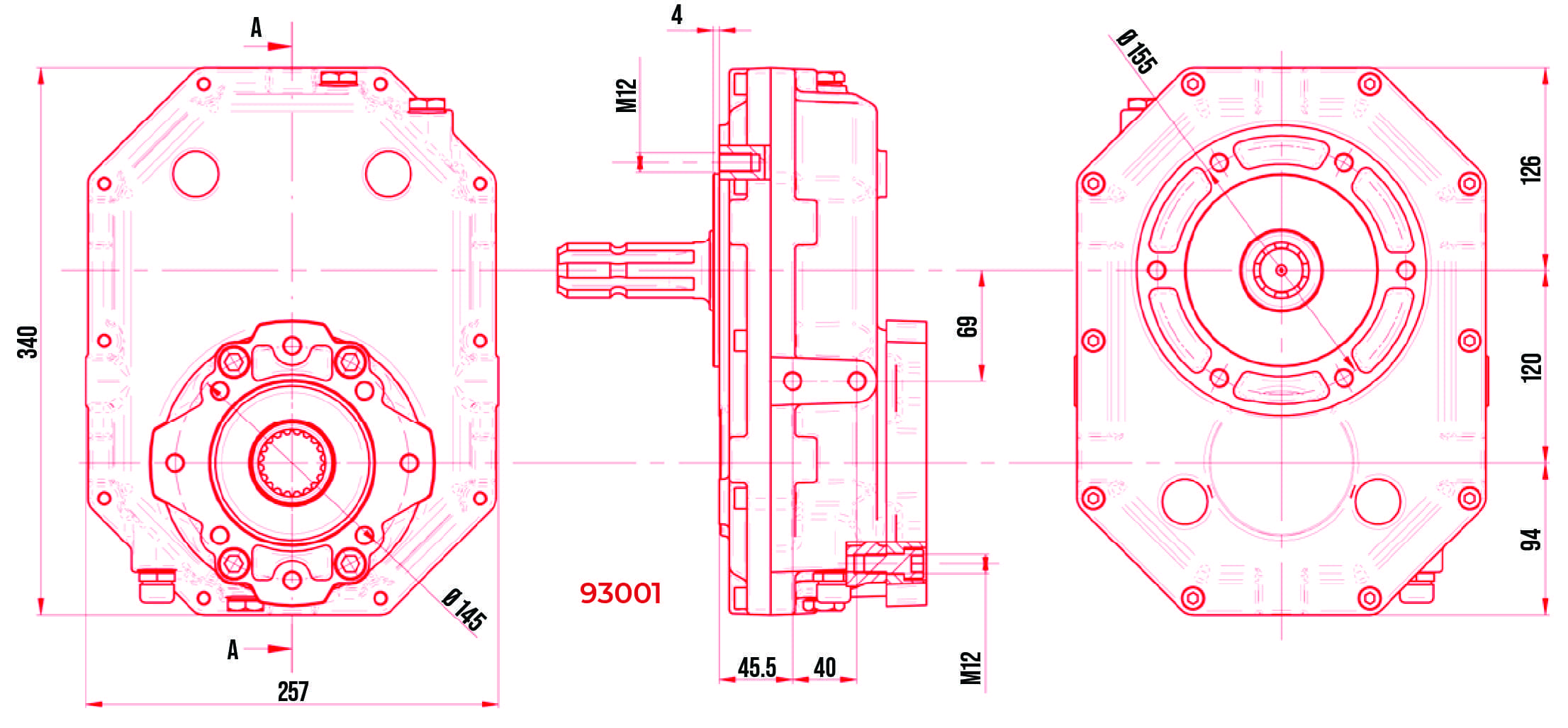

Borelli 93000 Series Step-Up-PTO PDF
Max. Input : 72 KW
Max. Ouput Torque: 400 Nm
Ratio: 3.2 To 1
Pump Mount: SAE B & SAE C
Weight: 27 Kg
| Model | DESCRIPTION |
|---|---|
| 93002-3 | Gearbox 1 3/8” 6 Spline Female |
| 93001-3 | Gearbox 1 3/8” 6 Spline Male |
| Model | DESCRIPTION – Sleeves |
|---|---|
| 90202 | SAE B Adaptor Plate |
| 90203 | SAE C Adaptor Plate |
| 35503 | Z20 7/8” 13 Spline Sleeve |
| 35504 | Z20 1.0” 15 Spline Sleeve |
| 34200 | Z20 1 1/4” 14 Spline Sleeve |
| Brand |
|---|
Borelli 60000 Series Step-Up-PTO PDF
Same Size As ML32
Maximum Input : 10 KW
Maximum Output Torque: 58 Nm
Ratio: 3.5 To 1
Pump Mount: Group 2 Euro
Borelli 71000 Series Step-Up-PTO PDF
Same Size As ML52
Max. Input : 20 KW
Max. Output Torque: 130 Nm
Ratio: 3.5 To 1
Pump Mount: Group 2 & Group 3 Euro
Borelli MLT35 Series Step-Up-PTO PDF
Max. Input: 40 KW
Max. Ouput Torque: 280 Nm
Ratio: 3.7 To 1
Pump Mount: Group 3.5 Euro
Weight: 16 Kg
