Description

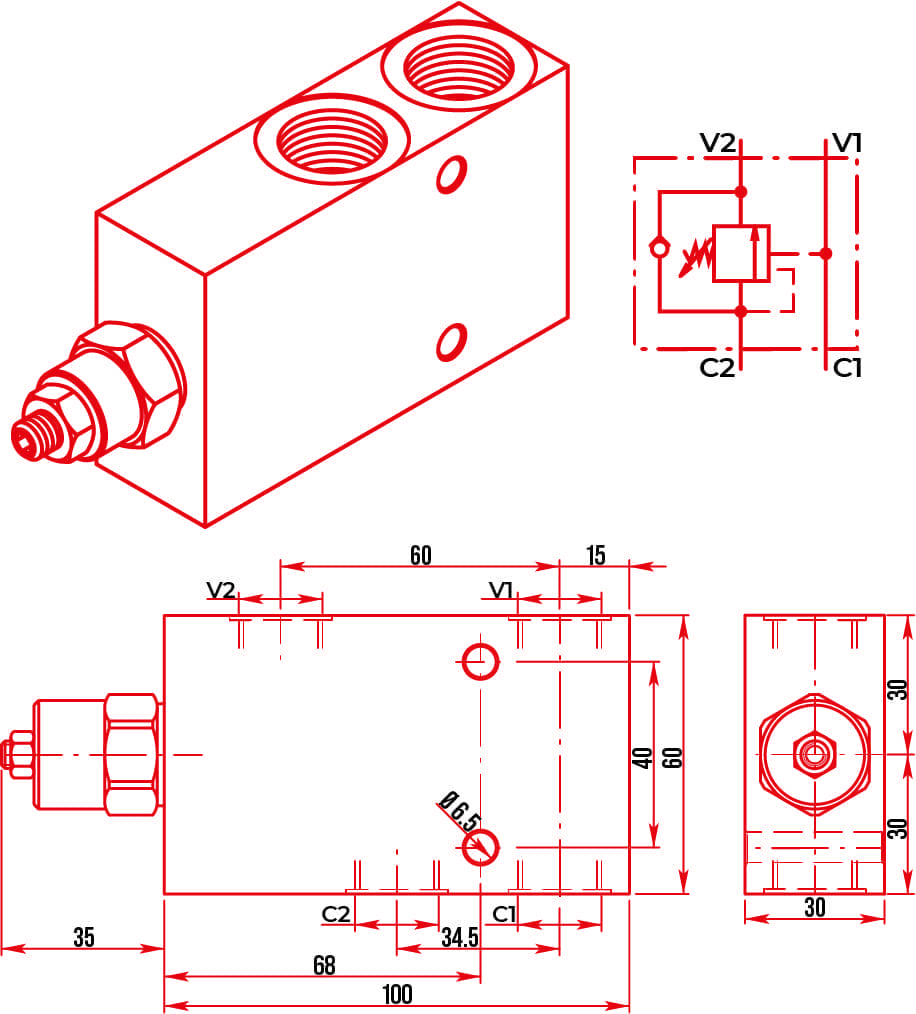

CBF OVC-SE-L — inline over centre
| Model Number | Ports | Max. Flow | Max. PRESSURE | LENGTH |
|---|---|---|---|---|
| CBFOVCSEL3802 | 3/8” BSPP | 40 LPM | 350 Bar | 100 mm |
| CBFOVCSEL1202 | 1/2” BSPP | 60 LPM | 350 Bar | 100 mm |
CBF Inline Over Centre
Single Inline Over centre Valve
Pilot Ratio: 4.25/1
01 White Spring Range 20 – 200 Bar, Factory Setting 100 Bar
02 Black Spring Range 50 – 350 Bar, Factory Setting 280 Bar
