Description
EXCAVATOR load hold Valve
| MODEL NUMBER | DESCRIPTION |
|---|---|

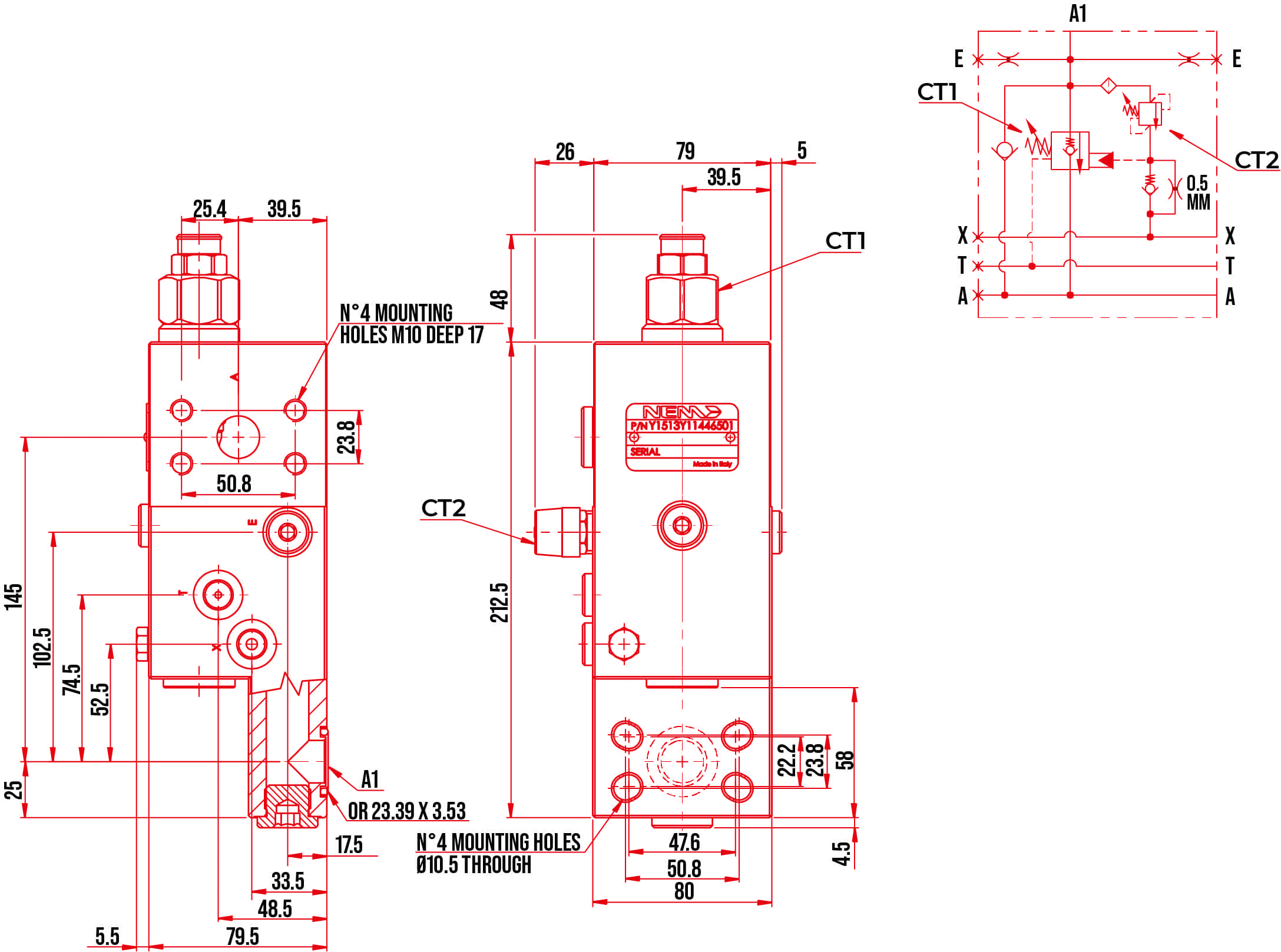

| Y1513Y11446501 | Load Hold/Anti Drop Valve 3/4″ SAE Code 61 & 62 |

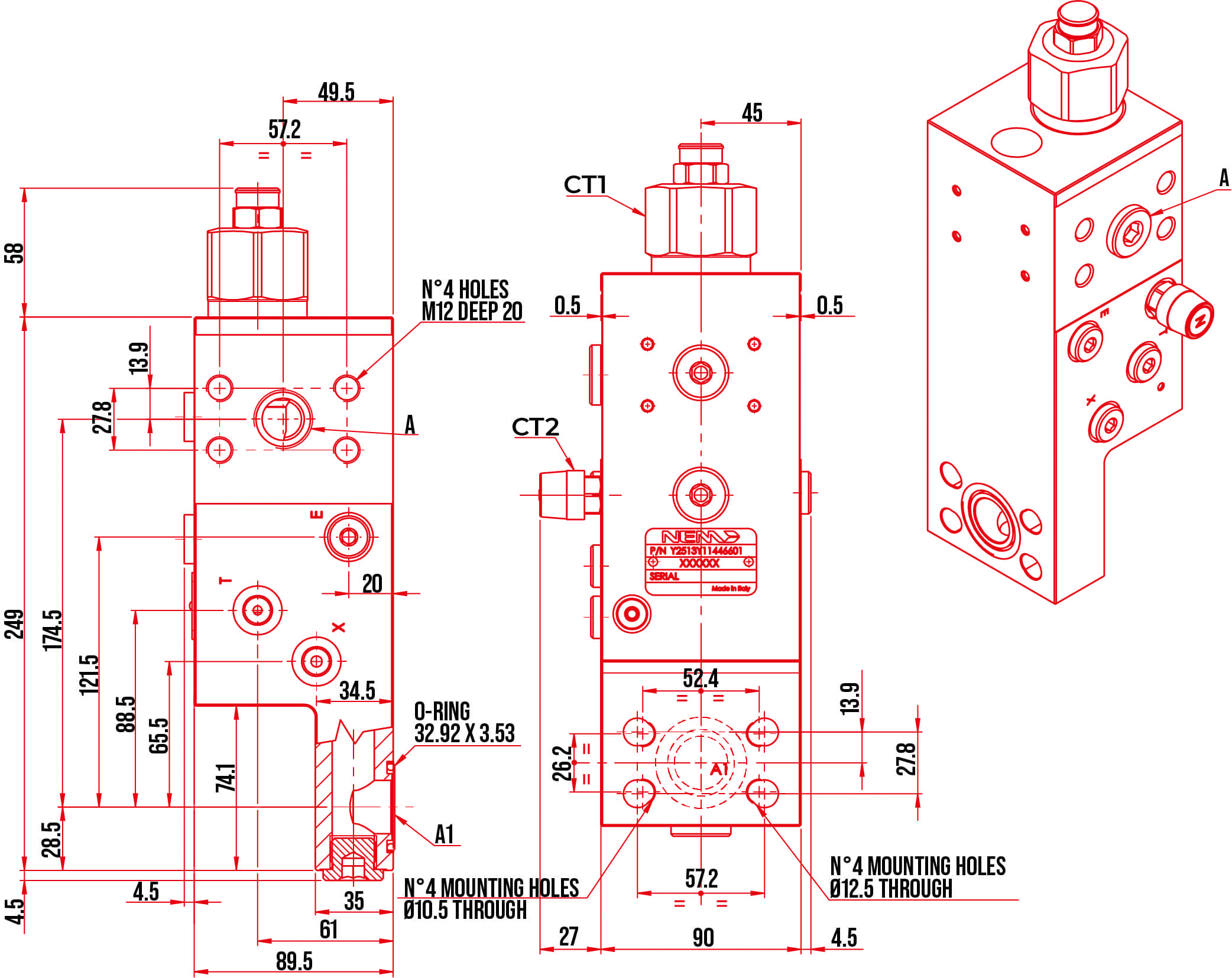

| Y2513Y11446601 | Load Hold/Anti Drop Valve 1” SAE Code 61 & 62 |
NEM Excavator Load hold Valves
NEM Y1513Y11446501 PDF
NEM Y2513Y11446601 PDF
SAE Code 61 & 62 Flange Ports ¾” & 1”
Maximum Flow: 400 LPM
Maximum Pressure: 420 Bar
Ports: T / E / X = G1/4
Ports A / A1 = 3/4 SAE 6000 / 3/4 SAE 3000
Additional information
