Description

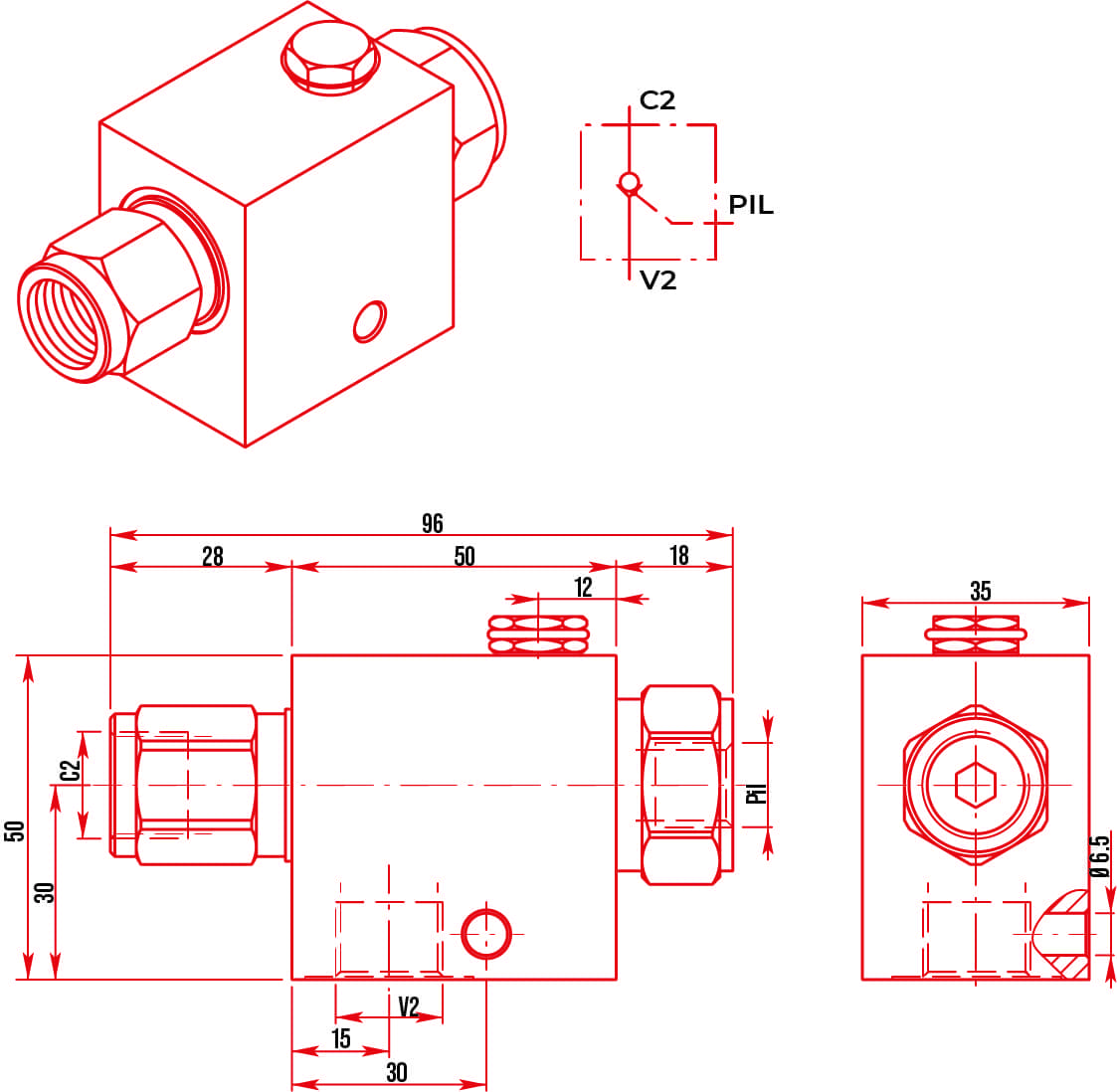

CBFVBS-L-PS — Pilot Operated
| Model Number | Port | Max. Flow | Max. Pressure | Length (MM) |
|---|---|---|---|---|
| CBFVBSLPS14 | 1/4” BSPP | 20 LPM | 350 Bar | 100.0 |
PILOT OPERATED CHECK VALVE Single POC with Vented Pilot Piston
Maximum Operating Pressure: 350 Bar
Maximum Flow Rate: 20 LPM
Pilot Ratio: 11/1
Single Pilot Operated Check Valve With Vented Pilot Piston
Additional information
| Brand |
|---|
